Mfr Part #:

SFML-110-T2-S-D-LC

Available from 1 distributors

Mfr Name: Samtec Inc.

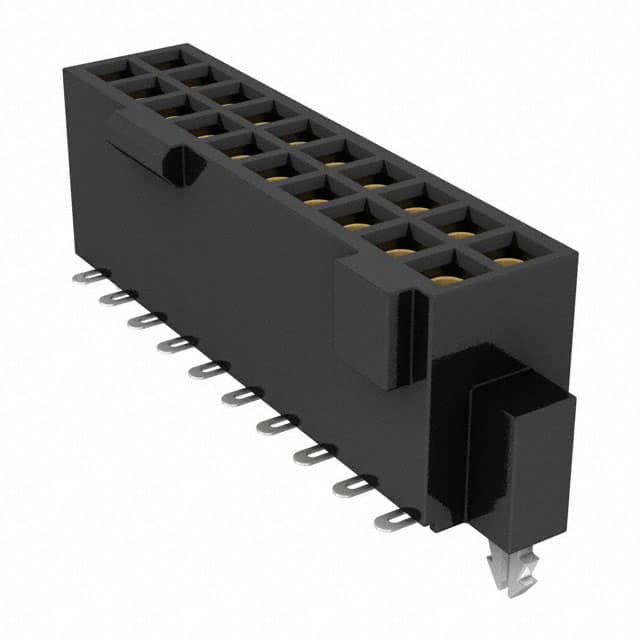

Samtec SFML series 20-position rectangular connector, female socket, 1.27mm pitch, surface mount, locking clip.

✓ Total Stock: 12 pcs

$ Price Range: $2.97 - $4.14

SFML-110-T2-S-D-LC Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	12 pcs On Request	12 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SFML-110-T2-S-D-LC Description

Short technical summary and product information.

The Samtec SFML-110-T2-S-D-LC is a 20-position (2 rows of 10) surface mount receptacle from the SFML series. It features a 1.27mm pitch and 1.27mm row spacing, making it suitable for high-density board-to-board or cable connections. The locking clip provides secure mating and increased unmating force.

Electrical specifications include a current rating of 3.7A per pin (with 2 pins powered) and a voltage rating of 275 VAC. The contacts are made of phosphor bronze with 10µ" (0.25µm) gold plating over 50µ" nickel underplate. The insulator is black LCP rated UL94 V-0, and the operating temperature range is -55°C to 125°C.

The connector is surface mount with solder termination, designed for lead-free soldering processes. It is RoHS compliant (inferred from lead-free solderable statement). This part is part of Samtec's Tiger Eye LITE family, offering rugged reliability in compact form factors.

SFML-110-T2-S-D-LC Quick Information

Product Type: Receptacle, Female Socket

Series: SFML

Canonical Name: Samtec SFML Series 20-Position (2x10) 1.27mm Pitch Surface Mount Receptacle with Locking Clip

Subcategory: Female Socket

SFML-110-T2-S-D-LC Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: No

SFML-110-T2-S-D-LC Estimated Pricing

Qty	Low	High
1+	$4.14	$4.14
25+	$3.69	$3.69
35+	$3.17	$3.17
105+	$3.15	$3.15
2,520+	$2.97	$2.97

Estimated market price range - modelled values for guidance only, not live distributor offers.

SFML-110-T2-S-D-LC Features

20-position dual-row surface mount receptacle.
1.27mm pitch with locking clip fastening.
Gold-plated phosphor bronze contacts.
Rated for 3.7A per pin and 275 VAC.
Wide operating temperature -55°C to 125°C.

SFML-110-T2-S-D-LC Applications

Suitable for board-to-board connections.
Supports cable-to-board interface.
Locking clip secures mating in vibration.

SFML-110-T2-S-D-LC FAQs

7 frequently asked questions generated from this part’s specifications.

What is the number of positions on the SFML-110-T2-S-D-LC?

20 positions arranged in 2 rows of 10.

What is the pitch of the connector?

1.27mm (0.050")

What is the current rating of this connector?

3.7A per pin when 2 pins are powered.

What is the voltage rating?

275 VAC

What is the mounting type?

Surface Mount with Solder termination.

What is the operating temperature range?

-55°C to 125°C

What is the insulator material and flammability rating?

Black LCP with UL94 V-0 rating.

Category	Headers, Receptacles, Female Sockets
Manufacturer Name	Samtec Inc.
AEC Qualified	No
Automotive Grade	No
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	10µin (0.25µm)
Contact Material	Phosphor Bronze
Contact Type	Female Socket
Current Rating	3.7A
Current Rating (Amps)	3.2A per Contact
Fastening Type	Locking Clip
Features	Locking Clip
Halogen Free	No
Industrial Grade	Yes
Insulation Color	Black
Insulation Height	4.70mm (0.185")
Insulator Material	LCP
Lead Style	SMT
Material Flammability Rating	UL94 V-0
Medical Grade	No
Military Grade	No
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Pitch	1.27mm (0.050")
Row Spacing	0.050" (1.27mm)
SVHC Present	Not Present
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
Voltage Rating	275 VAC
