| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
203 pcs
|
203 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style |

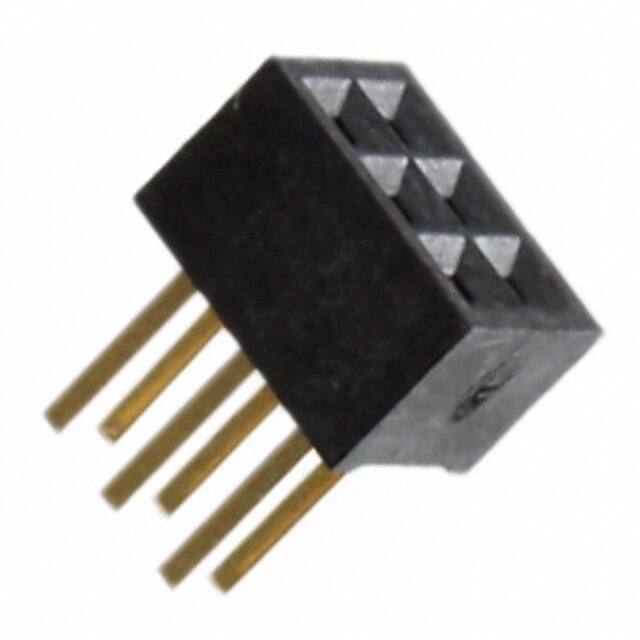

The Sullins Connector Solutions SFM210-LPSE-D03-ST-BK is a 6 position, dual row female socket header designed for board-to-board applications. It features a 1.00mm pitch and 2.10mm insulation height, with through hole mounting and solder termination. The insulator is molded from black LCP rated UL94 V-0, and the phosphor bronze contacts are plated with 10.0µin gold for reliable mating.
This connector is rated for 1A current per contact with a maximum contact resistance of 20 mΩ. It operates over a temperature range of -40°C to +125°C and can withstand a peak processing temperature of 260°C for 10 seconds, making it suitable for lead-free soldering processes. The push-pull fastening type ensures easy mating and unmating.
Typical applications include compact electronic devices where space is at a premium, such as portable equipment, instrumentation, and industrial controls. The 1.00mm pitch allows for high-density interconnection while maintaining reliable electrical performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.93 | $1.93 |
| 84+ | $1.41 | $1.41 |
| 168+ | $1.35 | $1.35 |
| 504+ | $1.25 | $1.25 |
| 1,008+ | $1.19 | $1.19 |
| 5,040+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6 positions, all loaded, in 2 rows.
1.00mm (0.039 inches).
1 Amp per contact.
Through hole with solder termination.
-40°C to +125°C.
Phosphor bronze contacts with 10.0µin gold plating on the mating area.
Black LCP insulator rated UL94 V-0.
