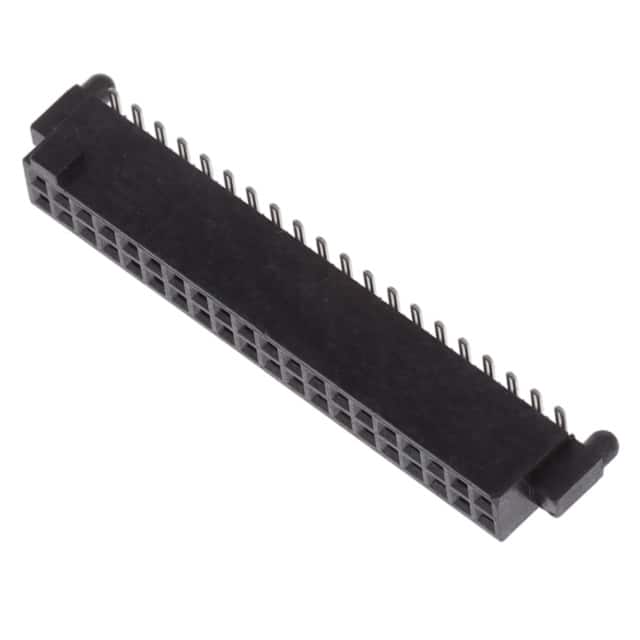

SFM-120-02-L-D-A-P-TR The Samtec Inc. SFM-120-02-L-D-A-P-TR is a 40-position receptacle with a 1.27mm pitch, designed for surface mount applications. It offers a current rating of 3.2A per contact and a voltage rating of 250VAC.
Mfr Part #:

SFM-120-02-L-D-A-P-TR

Available from 1 distributors
Mfr Name: N-A
N-A
The Samtec Inc. SFM-120-02-L-D-A-P-TR is a 40-position receptacle with a 1.27mm pitch, designed for surface mount applications. It offers a current rating of 3.2A per contact and a voltage rating of 250VAC.
✓ Total Stock: 178 pcs

SFM-120-02-L-D-A-P-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
178 pcs
On Request
178 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SFM-120-02-L-D-A-P-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Type
Current Rating
Mounting Type
Pitch
Positions
Tape & Reel
Voltage Rating
View Similar Products (0)

SFM-120-02-L-D-A-P-TR Description

Short technical summary and product information.

This Samtec Inc. SFM series receptacle, part number SFM-120-02-L-D-A-P-TR, is a high-performance connector designed for various electronic applications. It features 40 positions with a fine 1.27mm pitch, making it suitable for space-constrained designs.



The receptacle is designed for surface mount technology, facilitating automated assembly processes. It boasts a robust construction with female socket contacts and a tin contact finish. The electrical specifications include a current rating of 3.2A per contact and a voltage rating of 250VAC, ensuring reliable performance in demanding environments.



Key features include its compact design and durable materials. The SFM series is known for its quality and reliability, making this receptacle a solid choice for interconnect solutions where precision and performance are critical. Its surface mount capability simplifies integration into modern PCB layouts.

SFM-120-02-L-D-A-P-TR Quick Information

Product Type: Receptacle
Series: SFM
Canonical Name: Samtec Inc. SFM Series Receptacle, 40 Positions, 1.27mm Pitch, Surface Mount
Subcategory: Headers, Receptacles, Female Sockets

SFM-120-02-L-D-A-P-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SFM-120-02-L-D-A-P-TR Features

  • 40 positions with 1.27mm pitch.
  • Surface mount receptacle design.
  • Rated for 3.2A per contact.
  • 250VAC voltage rating.
  • Female socket contacts with tin finish.

SFM-120-02-L-D-A-P-TR Applications

  • Ideal for high-density interconnects.
  • Suitable for automated PCB assembly.
  • Used in compact electronic devices.
  • Reliable signal and power connections.

SFM-120-02-L-D-A-P-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on this connector?

The connector has 40 positions.

What is the pitch of the contacts?

The pitch is 1.27mm.

What is the current rating per contact?

Each contact is rated for 3.2A.

What is the voltage rating of the connector?

The voltage rating is 250VAC.

What is the mounting type for this connector?

It is surface mount.

What is the contact finish material?

The contacts have a tin finish with 0.25µm thickness.

What type of contact does this receptacle use?

It uses female socket contacts.
