| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
279 pcs
|
279 pcs | On Request | 1 | On Request | On Request | 11/12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

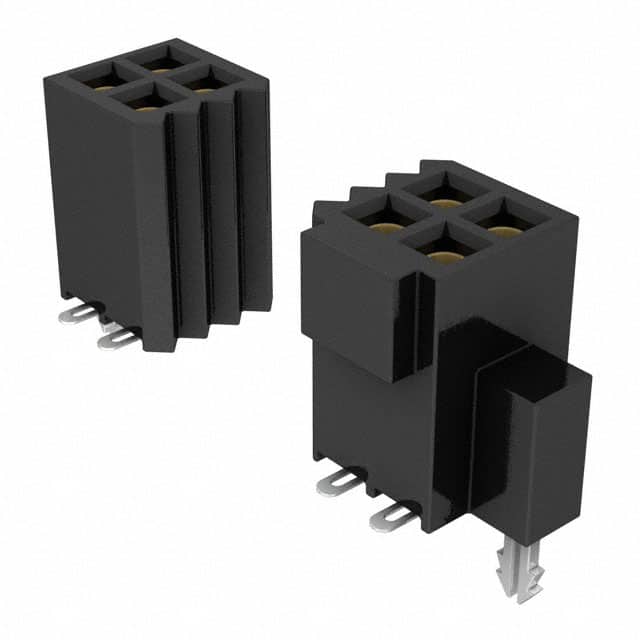

The Samtec SFM-115-02-S-D-LC is a 30-position, 2-row female socket receptacle from the Tiger Eye SFM series. It features a 1.27mm (0.050") pitch and surface mount solder termination, making it suitable for high-density board-to-board or cable-to-board interconnects.
This connector is rated for 3.7A per pin (2 pins powered) and 275VAC, with an operating temperature range of -55°C to +125°C. The contacts are beryllium copper with 30µ" (0.76µm) gold plating on the contact area and matte tin on the tail, ensuring reliable signal integrity and durability. The insulator is black LCP with UL94 V-0 flammability rating.
The -LC suffix indicates a locking clip feature for increased unmating force. The connector supports multiple mated stacking heights from 6.15mm to 11.76mm and is rated for 10,000 mating cycles with the specified gold plating.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.56 | $5.56 |
| 10+ | $5.16 | $5.16 |
| 25+ | $4.59 | $4.59 |
| 50+ | $4.20 | $4.20 |
| 100+ | $3.80 | $3.80 |
| 500+ | $3.60 | $3.60 |
| 1,000+ | $3.37 | $3.37 |
| 2,000+ | $3.28 | $3.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 positions in 2 rows.
1.27mm (0.050").
3.7A per pin with 2 pins powered.
275VAC.
Surface mount (SMT) with solder termination.
-55°C to +125°C.
Yes, it includes a locking clip for increased unmating force.
