| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
41 pcs
|
41 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Max Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

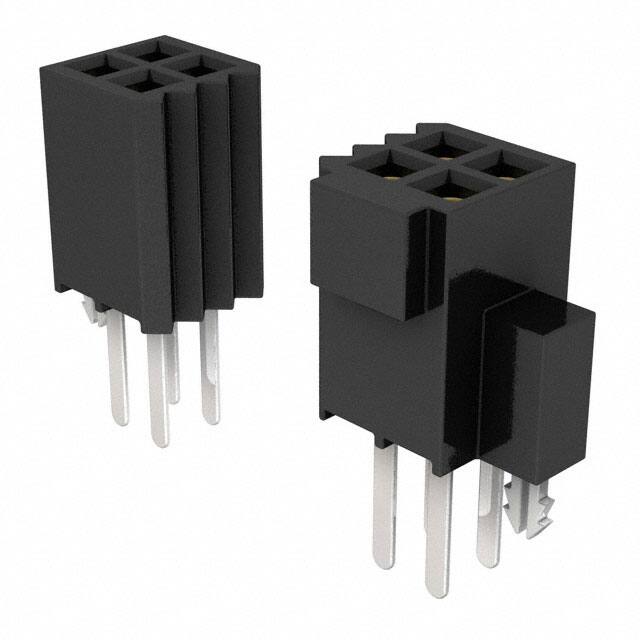

The Samtec SFM-110-01-S-D-LC is a 20 position, 2 row, 1.27mm pitch through-hole receptacle from the Tiger Eye SFM series. It features female socket contacts with a tin finish over 50 µ" nickel, a black LCP insulator rated UL94 V-0, and a push-pull fastening type with board lock. The connector is rated for 3.2A per contact (3.7A per pin with 2 pins powered per datasheet) and 250VAC (275 VAC per datasheet), with an operating temperature range of -55°C to +125°C. It supports multiple mated stacking heights from 6.02mm to 11.63mm and is designed for board-to-board or cable applications. The through-hole solder termination and Tiger Eye contact design provide reliable mechanical and electrical performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.15 | $5.15 |
| 25+ | $4.92 | $4.92 |
| 35+ | $4.04 | $4.04 |
| 105+ | $3.63 | $3.63 |
| 525+ | $3.45 | $3.45 |
| 1,015+ | $3.25 | $3.25 |
| 2,520+ | $3.11 | $3.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 1.27mm (0.050").
The current rating is 3.2A per contact (datasheet specifies 3.7A per pin with 2 pins powered).
The voltage rating is 250VAC (datasheet specifies 275 VAC).
The mounting type is through hole with solder termination.
It has 20 positions, all loaded, in 2 rows.
The operating temperature range is -55°C to +125°C.
The contact finish is tin with a thickness of 30.0 µin (0.76 µm).
