| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
315 pcs
|
315 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
315 pcs
|
315 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Type | |
| Current Rating (2 pins powered) | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulator Material | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

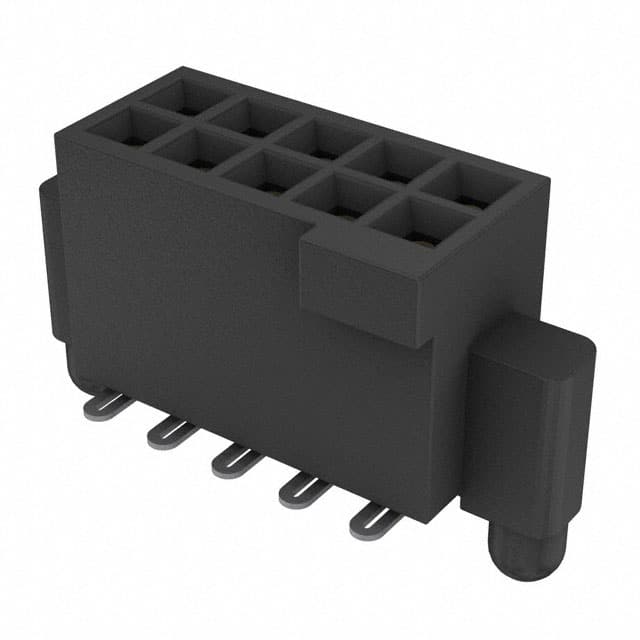

The SFM-105-02-S-D-A is a 10-position, 1.27mm pitch surface mount receptacle from Samtec's SFM series. It features a female socket design with Tiger Eye beryllium copper contacts (tin plated, 30 µin) for reliable performance. The insulator is black Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating, and the operating temperature range spans -55°C to 125°C. Electrical ratings include 3.2A per contact (3.7A per pin with 2 pins powered) and 250 VAC (275 VAC per datasheet). The connector uses a push-pull fastening mechanism and includes a board guide feature. It supports a range of mated stacking heights from 6.15mm to 11.76mm, making it suitable for board-to-board or cable applications. The component is surface mount with solder termination and is lead-free solderable per the datasheet.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.38 | $2.38 |
| 57+ | $1.93 | $1.93 |
| 114+ | $1.61 | $1.61 |
| 513+ | $1.45 | $1.45 |
| 2,052+ | $1.37 | $1.37 |
| 5,016+ | $1.36 | $1.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
1.27mm (0.050").
3.2A per contact (existing DB); 3.7A per pin with 2 pins powered (datasheet).
250 VAC (existing DB); 275 VAC (datasheet).
Surface mount.
-55°C to 125°C.
Beryllium copper (Tiger Eye).
