| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| SVHC Present | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Voltage Rating |

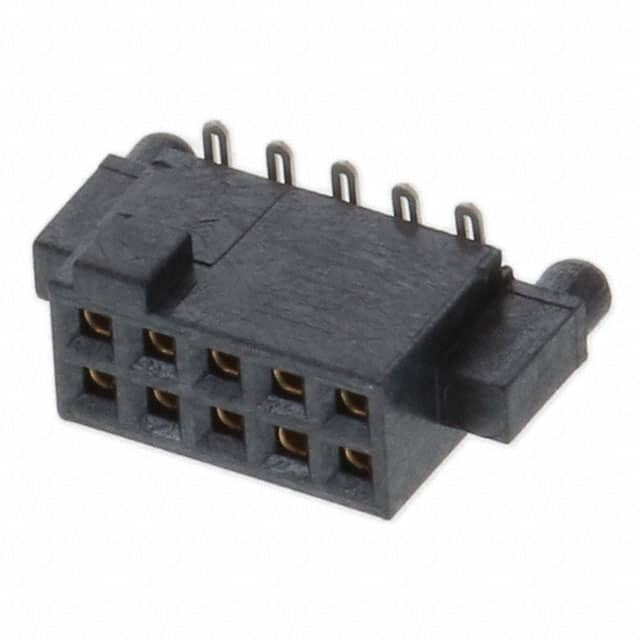

The Samtec SFM-105-02-L-D-A-K-TR is a 10-position, 2-row surface mount receptacle (female socket) on a 1.27mm (0.050") pitch. It is part of the SFM Tiger Eye series and is designed for board-to-board or cable-to-board interconnects. The connector features a push-pull fastening type, board guide, and pick-and-place pads for automated assembly.
Key electrical specifications include a current rating of 3.2A per contact and a voltage rating of 250VAC. The housing is black LCP with a UL94 V-0 flammability rating, and the operating temperature range is -55°C to 125°C. The contact finish is tin with 10µin thickness, and the contact material is beryllium copper (BeCu) per the datasheet. The connector supports multiple mated stacking heights from 6.15mm to 11.76mm.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.90 | $1.90 |
| 100+ | $1.49 | $1.49 |
| 675+ | $1.30 | $1.30 |
| 1,350+ | $1.25 | $1.25 |
| 2,025+ | $1.17 | $1.17 |
| 4,725+ | $1.11 | $1.11 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
1.27mm (0.050").
3.2A per contact.
250VAC.
Surface mount (SMT).
-55°C to 125°C.
2 rows.
