SFH690ABT

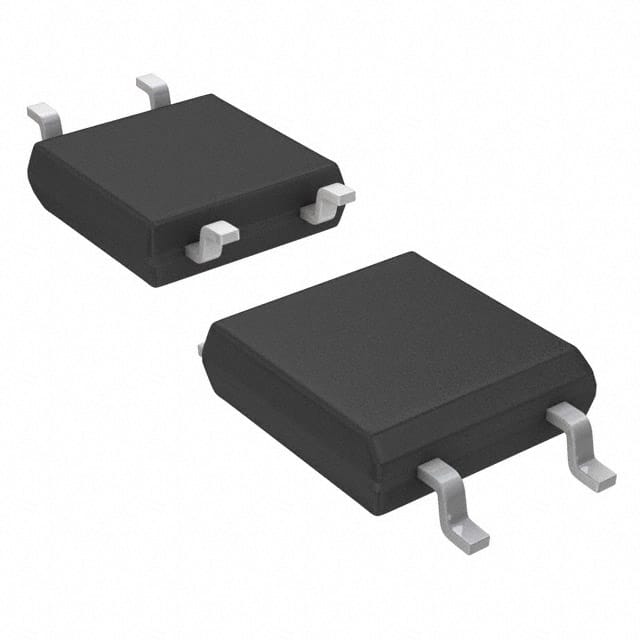

The Vishay SFH690ABT is a transistor output optocoupler housed in a 4-pin SOP package with a 100 mil pitch. It utilizes a GaAs infrared emitting diode coupled to a silicon planar phototransistor detector. This device is designed for signal transmission between electrically separated circuits, offering a high current transfer ratio (CTR) ranging from 50% to 300% at 5mA.

Key electrical specifications include an isolation test voltage of 3750Vrms, a high collector-emitter breakdown voltage (VCEO) of 70V, and a low collector-emitter saturation voltage (Vce) of 0.3V. The forward voltage (Vf) is typically 1.4V, and the reverse voltage (Vr) is 6V. It operates with a forward current of 50mA and a maximum collector current of 100mA, with a power dissipation of 150mW.

The SFH690ABT is suitable for applications requiring high density mounting or space-sensitive PCBs, such as PLCs and telecommunication systems. It features fast switching times, temperature stability, and low coupling capacitance. The component is available in a surface mountable 4-SOP package with a 2.54mm pitch, designed for end-stackable configurations.

This optocoupler is agency approved by UL, cUL, BSI, CQC, and FIMKO. It is also available with DIN EN 60747-5-5 (VDE 0884-5) option 1. The device operates within a temperature range of -55°C to +100°C and is supplied on tape and reel with 2000 parts per reel.
