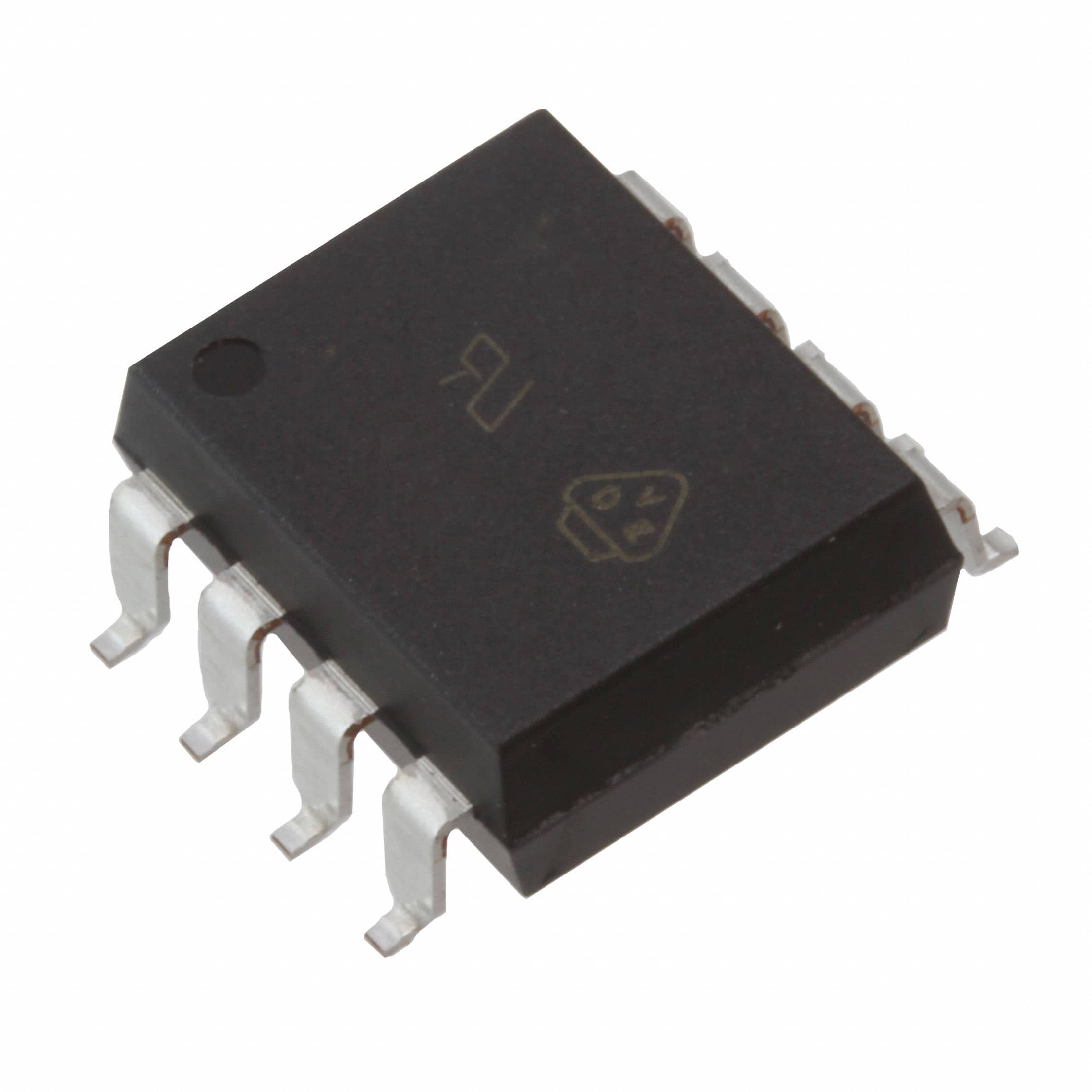

The Vishay SFH6732-X007T is a dual-channel, 5 MBd high-speed optocoupler. It consists of a GaAlAs infrared emitting diode optically coupled with an integrated photo detector that includes a Schmitt-Trigger stage for improved noise immunity. This optocoupler offers an isolation test voltage of 5300 Vrms and is compatible with TTL, LSTTL, and CMOS logic levels.
Key electrical specifications include a data rate of 5 MBits/s (2.5 MBit/s over temperature), a wide supply voltage range of 4.5 V to 15 V, and low input current requirements (1.6 mA to 5 mA). It features an internal shield for high common mode transient immunity, specified at 5 kV/µs and 10 kV/µs. The output type is push-pull with totem pole configuration, and propagation delays are typically 300 ns.
This device is specified for operation from 0 °C to 85 °C. It is housed in an industry-standard 8-SMD, Gull Wing package suitable for surface mounting. The SFH6732-X007T is compliant with RoHS Directive 2002/95/EC and WEEE 2002/96/EC.
Applications include industrial control, replacing pulse transformers, routine logic interfacing, motion/power control, high-speed line receivers, and microprocessor or computer peripheral interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.43 | $1.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation test voltage is 5300 Vrms.
The data rate is 5 MBd.
The operating temperature range is -40°C to 85°C.
It is in an 8-SMD, Gull Wing package.
It is a surface mount device.
The common mode transient immunity is 5 kV/µs, 10 kV/µs.
The RoHS status is RoHS3 Compliant.
