| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
210 pcs
|
210 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Transfer Ratio (Min) | |
| Input Type | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Vce Saturation (Max) |

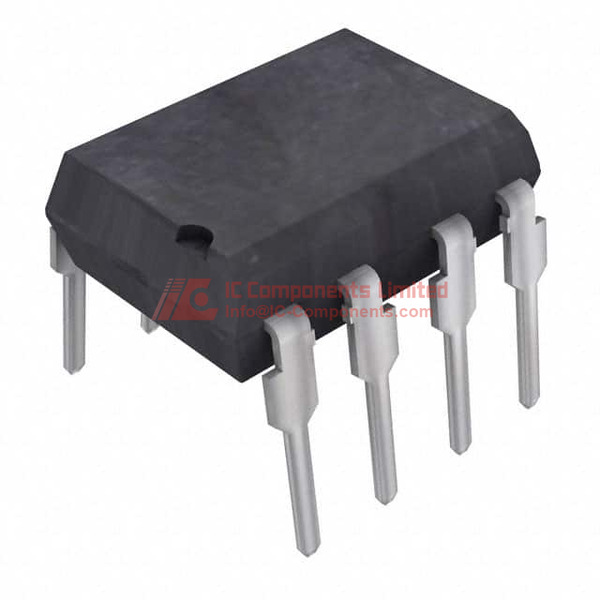

The SFH6345-X001 from Infineon is a high-performance optocoupler designed for isolation applications. It provides a robust 5300Vrms isolation voltage, ensuring safety and signal integrity in various electronic systems.
This optocoupler features a transistor output and operates with a typical forward voltage of 1.33V at 16mA. The maximum output current is rated at 8mA, with a minimum current transfer ratio (CTR) of 19% at 16mA. Its Vce saturation is a maximum of 400mV, and it offers typical turn-on and turn-off times of 300ns.
The SFH6345-X001 is suitable for applications requiring reliable electrical isolation between circuits. Its through-hole mounting type and 8-DIP package make it easy to integrate into existing PCB designs. The operating temperature range is from -55°C to 100°C, accommodating diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.60 | $7.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SFH6345-X001 has a voltage isolation of 5300 Vrms.
The maximum output voltage is 25 V.
It comes in an 8-DIP (0.300 inch, 7.62mm) through-hole package.
-55°C to 100°C.
Yes, it is RoHS3 compliant.
