SFH617A-3 The Vishay SFH617A-3 is a transistor output optocoupler offering 5300Vrms isolation. It operates from -55°C to 110°C and features a current transfer ratio between 100% and 200%.
Mfr Part #:

SFH617A-3

Available from 3 distributors
Mfr Name: Vishay
Vishay
The Vishay SFH617A-3 is a transistor output optocoupler offering 5300Vrms isolation. It operates from -55°C to 110°C and features a current transfer ratio between 100% and 200%.
✓ Total Stock: 36,583 pcs
$ Price Range: $0.39

SFH617A-3 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
25,111 pcs
On Request
25111 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
7,872 pcs
On Request
7872 pcs On Request 1 On Request On Request 16+ On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,600 pcs
On Request
3600 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SFH617A-3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Current Transfer Ratio (Max)
Current Transfer Ratio (Min)
Forward Current
Forward Voltage
Industrial Grade
Input Type
Lead Spacing
Medical Grade
Military Grade
Mounting Type
Number of Channels
Operating Temperature
Output Type
Power Dissipation
Reverse Voltage
Rise
Supplier Device Package
Supplier Package
Tape & Reel
Turn Off Time
Turn On
Vce Saturation (Max)
Voltage
View Similar Products (0)

SFH617A-3 Description

Short technical summary and product information.

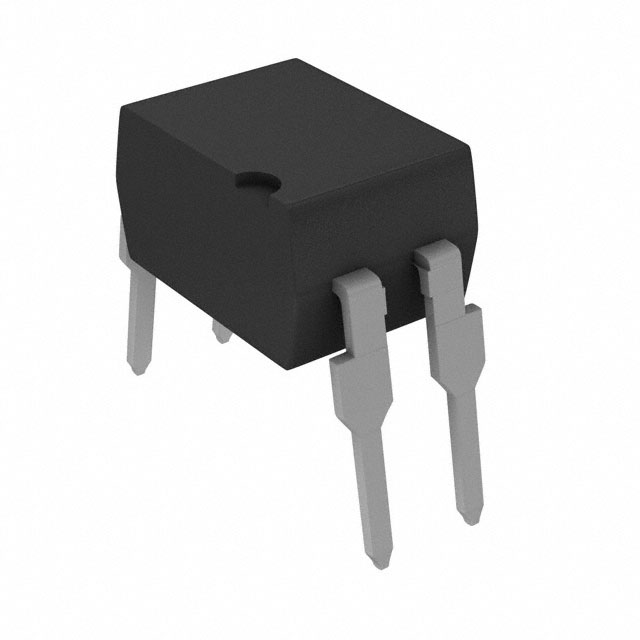

The Vishay SFH617A-3 is a high-reliability optocoupler designed for signal transmission between electrically separated circuits. It features a GaAs infrared diode emitter optically coupled to a silicon planar phototransistor detector, housed in a 4-DIP package.



Key electrical specifications include an isolation test voltage of 5300 Vrms, a maximum collector emitter voltage of 70 V, and a forward current of up to 60 mA. The current transfer ratio ranges from a minimum of 100% to a maximum of 200% at 10mA. It offers fast switching times with typical turn-on and turn-off times of 3µs and 2.3µs respectively, and typical rise and fall times of 2µs.



This optocoupler is rated for an operating temperature range of -55°C to +110°C, making it suitable for demanding environments. The 4-DIP package is through-hole mountable, with a standard lead spacing of 0.300 inches (7.62mm).



Applications for the SFH617A-3 include AC adapters, SMPS, PLCs, factory automation, and game consoles, where high isolation and reliable signal transfer are critical.

SFH617A-3 Quick Information

Product Type: Optocoupler
Canonical Name: SFH617A-3 Optocoupler with Phototransistor Output
Subcategory: Transistor Output Optocoupler

SFH617A-3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SFH617A-3 Estimated Pricing

Qty Low High
1+ $0.39 $0.39

Estimated market price range - modelled values for guidance only, not live distributor offers.

SFH617A-3 Features

  • 5300Vrms isolation voltage rating.
  • Phototransistor output type.
  • Wide -55°C to 110°C operating temperature.
  • Current transfer ratio 100-200%.
  • Through-hole 4-DIP package.

SFH617A-3 Applications

  • AC adapter power supplies.
  • Switch mode power supplies.
  • Programmable logic controllers.
  • Factory automation systems.
  • Game console interfaces.

SFH617A-3 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the SFH617A-3 optocoupler?

The SFH617A-3 optocoupler has an isolation voltage of 5300 Vrms.

What is the operating temperature range for the SFH617A-3?

The SFH617A-3 operates between -55°C and 110°C.

What is the current transfer ratio (CTR) of the SFH617A-3?

The current transfer ratio for the SFH617A-3 is between 100% and 200% at 10mA.

What type of output does the SFH617A-3 optocoupler have?

The SFH617A-3 optocoupler has a transistor output.

What package type is the SFH617A-3 optocoupler supplied in?

The SFH617A-3 optocoupler is supplied in a 4-DIP package.
