| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
328,727 pcs
|
328727 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
193 pcs
|
193 pcs | On Request | 1 | On Request | On Request | 1426+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Current | |
| Forward Voltage | |
| Number of Channels | |
| Output Type | |
| Power Dissipation | |
| Reverse Voltage | |
| SVHC Present | |
| Tape & Reel |

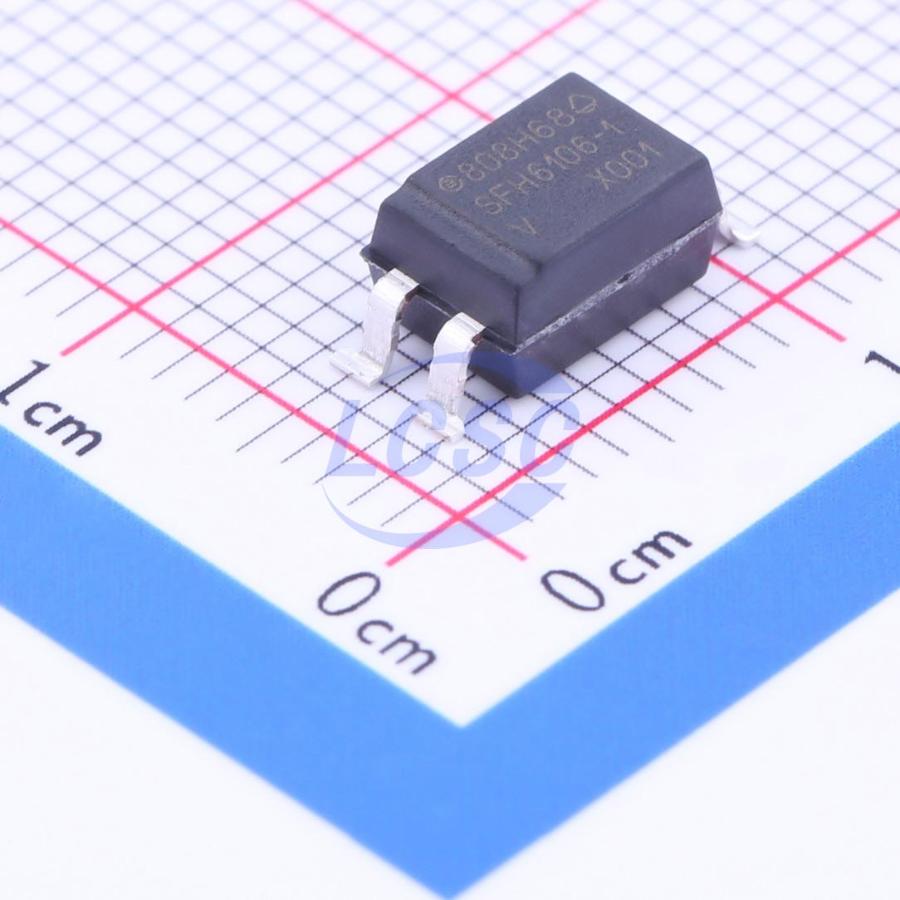

The Vishay SFH6106-1X001T is a single-channel transistor output optocoupler designed for signal isolation applications. It features a phototransistor output and provides a high isolation voltage of 5300Vrms, making it suitable for applications requiring electrical separation.
Key electrical specifications include a maximum forward current of 60mA, a maximum collector current of 100mA, and a maximum collector-emitter voltage of 70V. The device operates within a temperature range of -55°C to +100°C and has a power dissipation rating of 150mW.
This optocoupler is housed in an SMD-4 package, facilitating surface-mount assembly. The current transfer ratio (CTR) ranges from 40% to 80%. Its robust design and specifications make it a reliable choice for various electronic circuits requiring signal isolation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.38 | $0.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
SMD-4
-55°C to +100°C
40% to 80% at IF=10mA, Vce=5V
5300 Vrms
NPN Phototransistor
1
100mA
