| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
523 pcs
|
523 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Style | |
| Termination | |
| Termination Style |

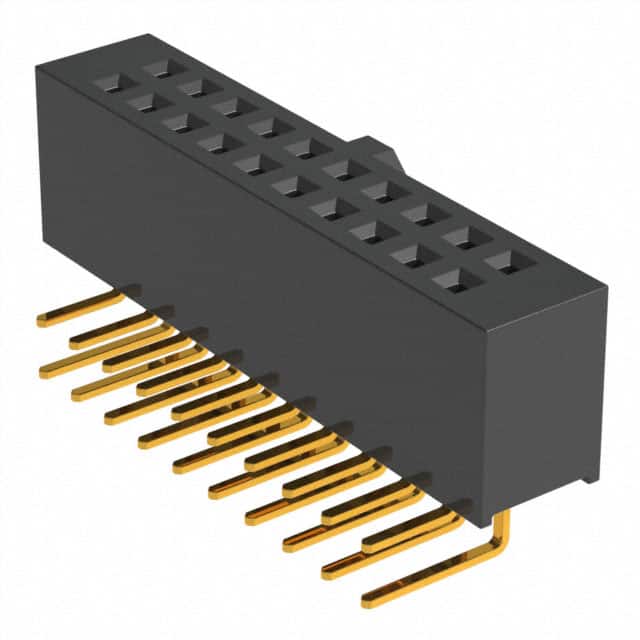

Part SFH11-PBPC-D10-RA-BK is a 20-position female socket header from Sullins Connector Solutions, part of the SFH11 series. It features dual rows with 0.100" (2.54mm) pitch and 0.100" row spacing. The connector is designed for board-to-board applications with through hole, right angle mounting and solder termination. Contacts are phosphor bronze with gold flash finish. The insulator is black PBT rated UL94 V-0. Electrical ratings include 3A current, 20mOhm max contact resistance, 1000VAC dielectric withstanding voltage, and 5000MOhm min insulation resistance. Operating temperature range is -40°C to +105°C. The connector includes a polarizing key for correct mating orientation.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.29 | $1.29 |
| 20+ | $1.04 | $1.04 |
| 100+ | $0.93 | $0.93 |
| 500+ | $0.83 | $0.83 |
| 1,000+ | $0.79 | $0.79 |
| 5,000+ | $0.70 | $0.70 |
| 10,000+ | $0.67 | $0.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions arranged in two rows.
2.54mm (0.100")
3A per contact.
1000 VAC.
Through hole, right angle.
-40°C to 105°C.
UL94 V-0.
