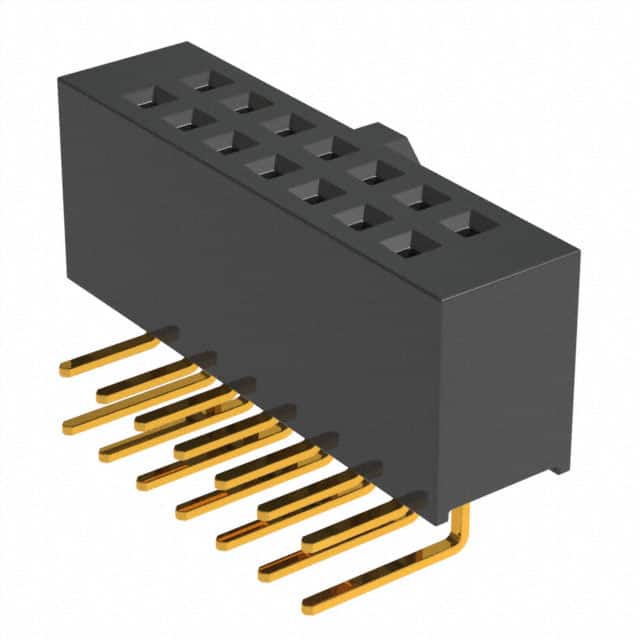

The SFH11-PBPC-D07-RA-BK is a 14-position female socket header from Sullins Connector Solutions, part of the SFH11 series. It features a dual row configuration with all 14 positions loaded, a 2.54mm (0.100") contact pitch, and matching 2.54mm row spacing. The right angle through-hole mounting with solder termination enables compact board-to-board connections.
Key specifications include a 3A current rating, contact resistance of 20 milliohms maximum, dielectric withstanding voltage of 1000 VAC, and insulation resistance of 5000 megohms minimum. The contacts are gold flash finished for reliable signal integrity. The header is rated for operating temperatures from -40°C to +105°C and meets UL94 V-0 flammability requirements.
The black PBT insulator includes a polarizing key for correct alignment during mating. The component is designed to mate with SBH11 series headers. Maximum processing temperature is 230°C for 60 seconds or 260°C for 10 seconds, compatible with typical soldering processes.
