| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,075 pcs
|
1075 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Ambient Light Sensor Range | |
| Current Consumption (Stand-by) | |
| I2C Interface Speed | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Package Size | |
| Proximity Detection | |
| Proximity Sensor Detection Range | |
| Supplier Device Package | |
| Type | |
| Voltage | |
| Wavelength |
The Osram SFH 7770 is a versatile optical sensor designed for ambient light and proximity detection applications. It integrates both an ambient light sensor (ALS) with a range of 3lx to 65000lx and a proximity sensor (PS) capable of detecting objects up to 100mm away.
This sensor utilizes an I2C interface, supporting standard, fast, and high-speed modes (100kHz, 400kHz, and 3.4MHz). It operates within a voltage range of 2.3V to 3.1V and features low current consumption of less than 5 PA in standby mode. The spectral sensitivity of the ambient light sensor is well-matched to the human eye, providing accurate light level measurements.

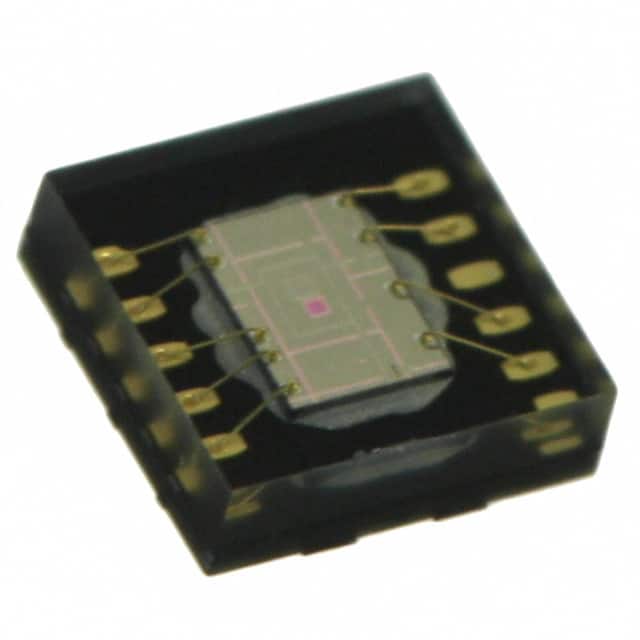

Designed for surface mounting, the SFH 7770 comes in a compact 10-SMD, Flat Lead package measuring 2.8 x 2.8 x 0.9 mm. Its features make it suitable for a wide range of consumer electronics, including mobile phones, PDAs, notebooks, and cameras. The device is RoHS3 compliant and rated MSL 1 for moisture sensitivity.
Key features include gesture recognition capability and outputs to drive up to three IR emitters, optimized for 850nm emitters. The sensor also offers suppression of ambient light, ensuring reliable proximity detection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the SFH 7770 sensor is between 2.3V and 3.1V.
The SFH 7770 sensor is available in a 10-SMD, Flat Lead package.
The operating temperature range for the SFH 7770 sensor is -20°C to 85°C.
Yes, the SFH 7770 sensor is RoHS3 Compliant.
The proximity sensor in the SFH 7770 has a detection range of up to 100mm.
The ambient light sensor in the SFH 7770 has a measurement range from 3lx to 65000lx.
The SFH 7770 supports I2C interface speeds of 100kHz, 400kHz, and 3.4MHz.
