| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
7,635 pcs
|
7635 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
413 pcs
|
413 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Current | |
| Forward Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Radiant Intensity (Ie) Min @ If | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

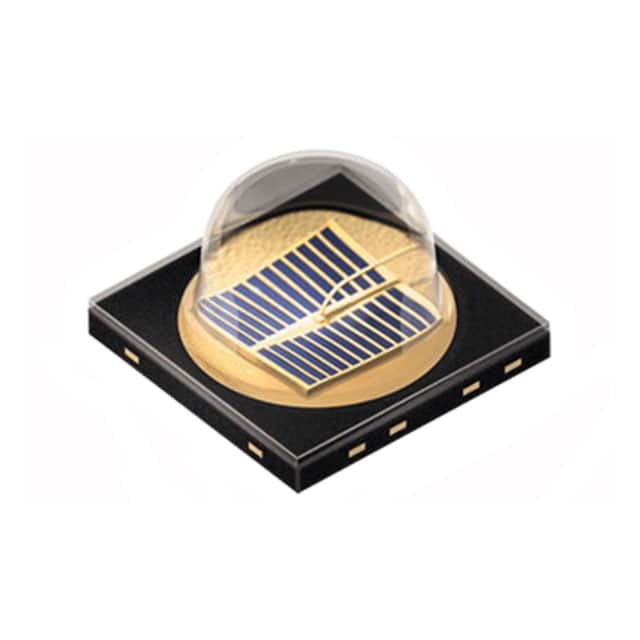

The SFH 4715S is an Infrared (IR) LED Emitter manufactured by ams-OSRAM USA Inc. This component is designed for applications requiring infrared light emission at a wavelength of 860nm.
Key electrical specifications include a maximum DC forward current of 1A and a typical forward voltage of 2.9V. The radiant intensity is rated at a minimum of 440mW/sr at 1A, with a wide viewing angle of 90°. The operating temperature range for this device is -40°C to 125°C (TA).
This LED emitter is housed in a 3-SMD, No Lead package, suitable for surface mounting. The OSLON® Black series designation indicates its specific product family. Environmental compliance includes RoHS3 compliance and REACH unaffected status, with an MSL rating of 2.
This part is categorized under Optoelectronics and specifically within LED Emitters - Infrared, UV, Visible. It is suitable for various industrial and electronic applications where precise infrared emission is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical forward voltage of the SFH 4715S is 2.9V.
The SFH 4715S has a wavelength of 860nm.
The viewing angle of the SFH 4715S is 90°.
The operating temperature range for the SFH 4715S is -40°C to 125°C (TA).
The SFH 4715S is supplied in a 3-SMD, No Lead package.
The SFH 4715S is designed for surface mounting.
