SFH 4713A The SFH 4713A is an 860nm Infrared (IR) LED from ams OSRAM. It features a surface mount package and operates at 1A with a 1.75V forward voltage.
Mfr Part #:

SFH 4713A

Available from 2 distributors
Mfr Name: Osram
Osram
The SFH 4713A is an 860nm Infrared (IR) LED from ams OSRAM. It features a surface mount package and operates at 1A with a 1.75V forward voltage.
✓ Total Stock: 9,300 pcs
$ Price Range: $0.99

SFH 4713A Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
8,100 pcs
On Request
8100 pcs On Request 1 On Request On Request 17+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,200 pcs
On Request
1200 pcs On Request 1 On Request On Request 20+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SFH 4713A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Country of Origin
Current
Failure Rate
Industrial Grade
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Orientation
Radiant Intensity (Ie) Min @ If
Tape & Reel
Type
Viewing Angle
Voltage
Wavelength
View Similar Products (0)

SFH 4713A Description

Short technical summary and product information.

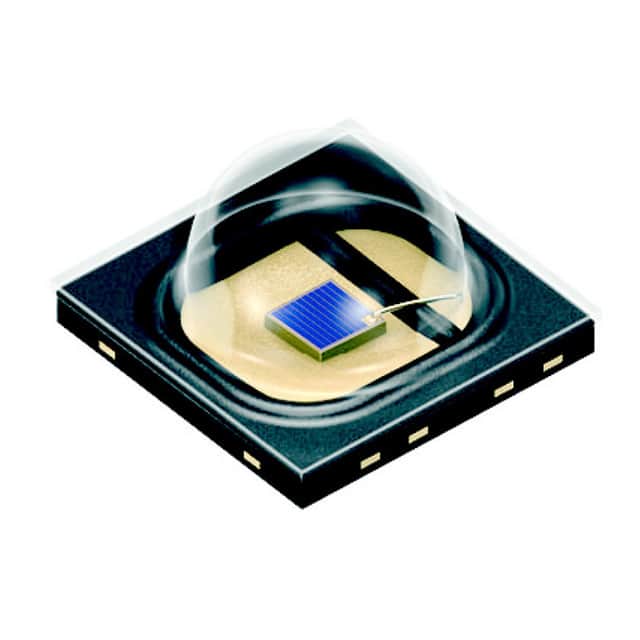

The ams OSRAM SFH 4713A is a high-power Infrared (IR) LED from the OSLON Black series. It emits light at a peak wavelength of 860nm and is designed for surface mounting.



This IR LED has a forward current rating of 1A and a forward voltage of 1.75V. It offers a radiant flux of 700mW and a radiant intensity of 250mW/sr at 1A. The angle of half intensity is 45 degrees, providing a focused beam.



Packaged in a 3-SMD, No Lead configuration, the SFH 4713A is suitable for various applications requiring infrared illumination. Its operating temperature range is -40°C to 125°C (TA). The LED is supplied in a reel package with a standard quantity of 600 units.



Compliance includes RoHS3, MSL 1, and REACH Unaffected. Standards approved are EN 60068-2-60, ANSI/ESDA/JEDEC JS-001-HBM, IEC 62471, and IEC 60825-1. The country of origin is Malaysia.

SFH 4713A Quick Information

Product Type: IR LED
Series: OSLON Black
Canonical Name: SFH 4713A Infrared (IR) LED
Subcategory: Infrared (IR) LED

SFH 4713A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SFH 4713A Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

SFH 4713A Features

  • 860nm peak wavelength infrared LED.
  • 1A forward current rating.
  • 1.75V forward voltage.
  • 45° angle of half intensity.
  • Surface mount 3-SMD, No Lead package.

SFH 4713A Applications

  • Ideal for infrared illumination.
  • Suitable for surveillance systems.
  • Used in traffic number plate recognition.
  • Applicable for biometrics systems.
  • Useful for machine vision systems.

SFH 4713A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak wavelength of the SFH 4713A IR LED?

The peak wavelength is 860nm.

What is the radiant flux of the SFH 4713A?

The radiant flux is 700mW.

What is the forward current for the SFH 4713A?

The forward current is 1A.

What is the forward voltage of the SFH 4713A?

The forward voltage is 1.75V.

What is the operating temperature range for this IR LED?

The operating temperature range is -40°C to 125°C (TA).

How is the SFH 4713A mounted?

It is a surface mount device.

What is the package type for the SFH 4713A?

The package type is 3-SMD, No Lead.
