| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25,590 pcs
|
25590 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Forward Current | |
| Forward Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Orientation | |
| Radiant Intensity (Ie) Min @ If | |
| Type | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

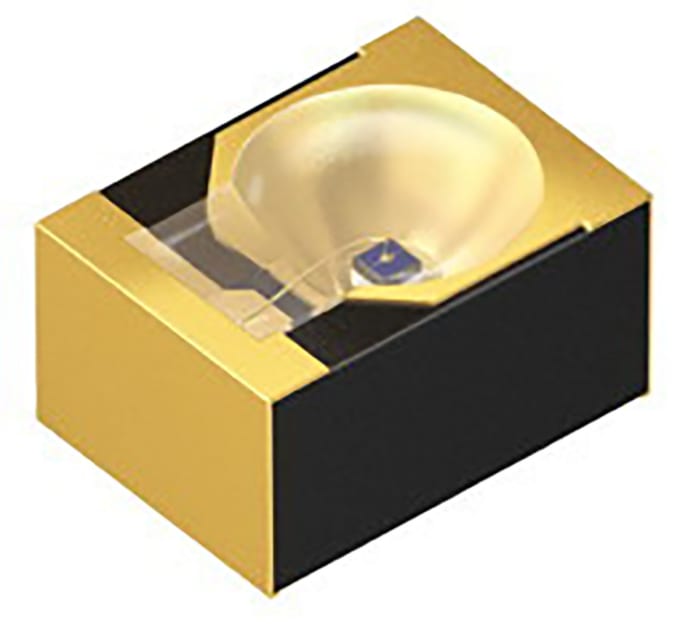

The ams OSRAM SFH 4640-UV is a high-power Infrared (IR) emitter from the MIDLED series, featuring a top-looking design within an OSRAM MIDLED package. This IR LED operates with a peak wavelength of 950nm and offers a radiant flux of 55mW and a radiant intensity of 125mW/sr. It is suitable for applications such as IR illumination for cameras, IR data transmission, automotive technology, and remote controls.
The device comes in a compact 2-SMD, No Lead package, measuring 3.3 x 2.35 x 1.7 mm, and is designed for surface mounting. It has a forward voltage of 1.5V and a forward current of 100mA. The angle of half intensity is 15°, providing a narrow beam angle. The operating temperature range is -40°C to 100°C (TA).
This LED is compliant with RoHS3 standards and has an MSL rating of 1. It is manufactured in China and meets the JEDEC Automotive Standard AEC-Q101.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The peak wavelength of the SFH 4640-UV is 950nm.
The radiant flux of the SFH 4640-UV is 55mW.
The viewing angle of the SFH 4640-UV is 30 degrees.
The SFH 4640-UV comes in a MIDLED package with no lead.
Yes, the SFH 4640-UV is RoHS3 compliant.
The operating temperature range is from -40°C to 100°C.
