| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,928 pcs
|
2928 pcs | On Request | 1 | On Request | On Request | 1549+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Area | |
| Current | |
| Dimensions | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Responsivity @ nm | |
| Spectral Range | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

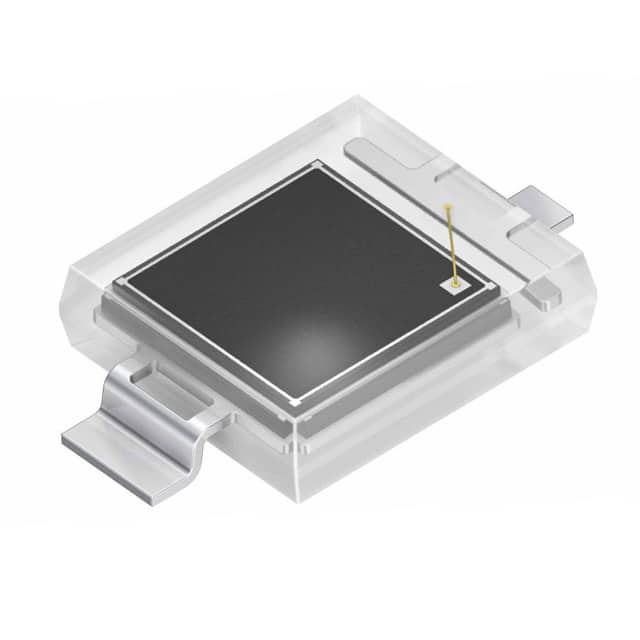

The Osram SFH 2440 is a silicon photodiode with a Vλ characteristic, suitable for ambient light sensing applications. It operates within a temperature range of -40°C to 100°C and has a maximum voltage rating of 16V.
Key electrical specifications include a typical photocurrent of 9.4 µA, a spectral range of sensitivity from 400 nm to 690 nm, and a peak wavelength sensitivity at 620 nm. The photodiode boasts a fast response time of 90 ns, with a fall time of 0.09 µs and a rise time of 9.00E-05 µs. Its radiant sensitive area is 7.02 mm² with a wide beam angle of 120°.
This component is housed in a compact 2-SMD Gull Wing package, designed for surface mounting. The dimensions are 6.45 mm in length, 3.85 mm in width, and 1.15 mm in height. It is categorized under Optical Sensors - Photodiodes and is part of the broader Sensors, Transducers category.
Application fields include mobile and wearables, vital sign monitoring, and medical and health digital diagnostic devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 100°C.
The spectral range of sensitivity is from 400 nm to 690 nm.
The response time is 90 ns.
It uses a 2-SMD Gull Wing package.
The maximum voltage rating is 16 V.
