| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Active Area | |
| Current | |
| Diode Type | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Responsivity @ nm | |
| Spectral Range | |
| Viewing Angle | |
| Voltage | |
| Wavelength |

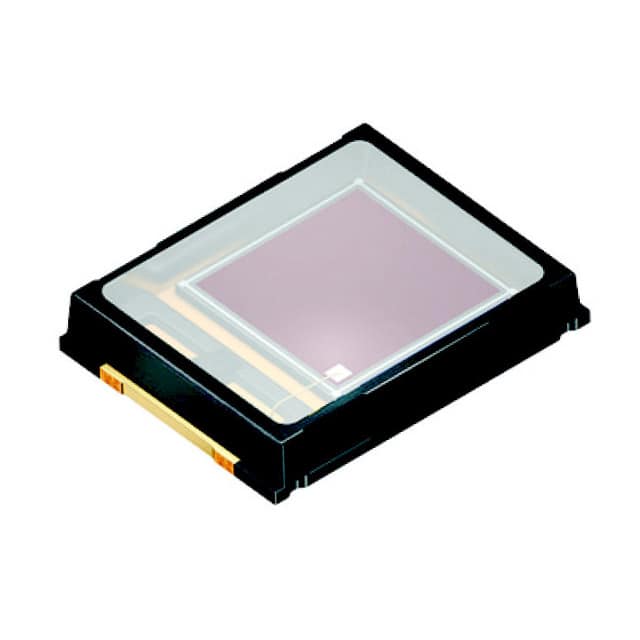

The Osram SFH 2240 is a PIN photodiode with a spectral range of 400nm to 690nm, centered around a peak sensitivity at 620nm. It operates with a voltage rating of 16V and a low current leakage of 1nA. The photodiode has a wide viewing angle of 120° and a rapid response time of 90ns, making it suitable for various detection applications.
This component is housed in a compact 2-SMD, No Lead package, designed for surface mount installation. Its active area measures 7.02mmﾂｲ, and it operates within a temperature range of -40°C to 100°C. The SFH 2240 offers a responsivity of 0.37 A/W at 620nm.
Its RoHS 3 compliance and Moisture Sensitivity Level 1 rating indicate suitability for a wide range of manufacturing environments. The SFH 2240 is a reliable choice for applications requiring precise and fast light detection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 100°C.
The peak wavelength sensitivity is 620nm.
The voltage rating is 16V.
The response time is 90ns.
The SFH 2240 is a PIN photodiode.
The package type is 2-SMD, No Lead.
It is a surface mount device.
