| Category | |
| Manufacturer Name | |
| Active Area | |
| Diode Type | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Response Time | |
| Reverse Voltage | |
| Spectral Range | |
| Storage Temperature | |
| Termination Style | |
| Viewing Angle |

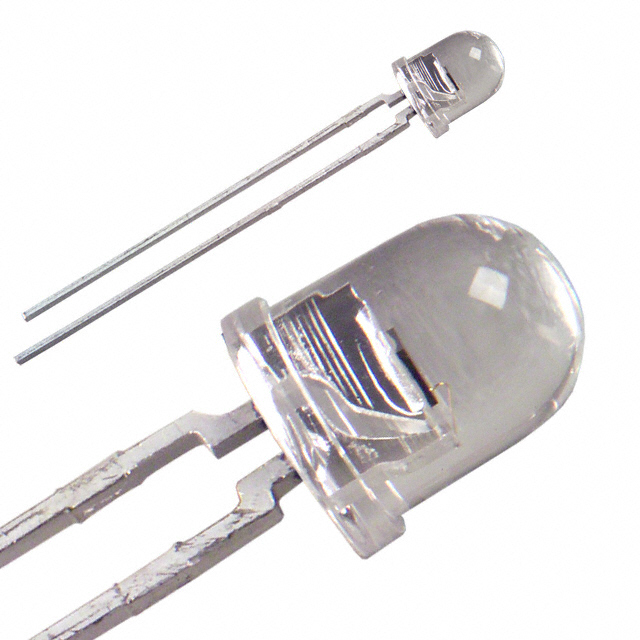

The ams-OSRAM SFH 229 is a PIN photodiode designed for various optical sensing applications. It emits light at a peak wavelength of 860 nm and has a spectral range from 380 nm to 1100 nm.
Key electrical characteristics include a maximum reverse voltage of 20V, a maximum forward voltage of 1.3V, and a maximum power dissipation of 150mW. The photodiode offers a typical responsivity of 0.62 A/W at 850nm and a maximum fall time of 10 ns and rise time of 10 ns.
This component is housed in a T-1 package and is designed for through-hole mounting. It operates within an environmental temperature range of -40°C to 100°C. The SFH 229 is suitable for applications requiring precise light detection within its specified spectral range.
Compliance information includes RoHS3 Compliant, REACH Unaffected, and Moisture Sensitivity Level 1 (Unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
-40 to 100 °C.
T-1 through-hole package, maximum diameter 4 mm, maximum height 5.2 mm.
380 nm to 1100 nm.
Typical responsivity is 0.62 A/W at 850 nm.
Rise time is 10 ns maximum and fall time is 10 ns maximum.
Typical dark current is 50 pA.
Maximum power dissipation is 150 mW.
