| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
320 pcs
|
320 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Card Type | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Resistance | |
| Dielectric Withstanding Voltage | |
| Durability | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Industrial Grade | |
| Insertion, Removal Method | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature | |
| Rated Current | |
| Rated Voltage | |
| Tape & Reel |

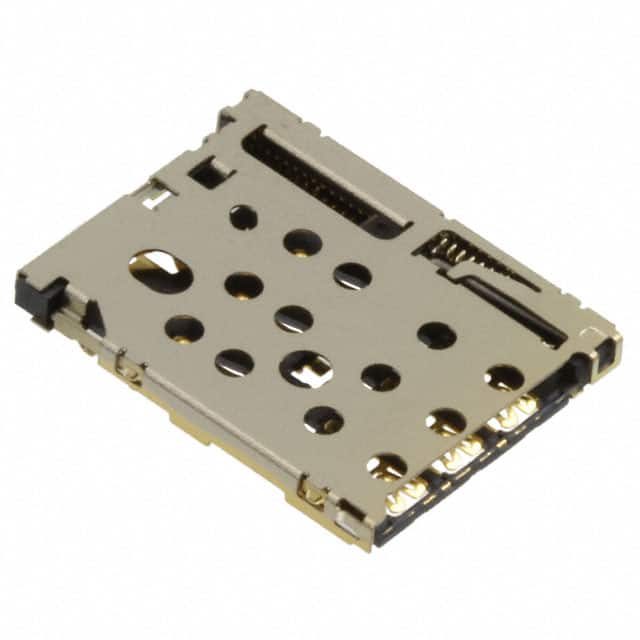

The SF72S006VBAR2500 is a nano SIM card connector from JAE Electronics' SF72 series, designed for space-constrained applications such as smartphones and tablets. It features a push-push (push in/push out) ejector mechanism for easy card insertion and removal, and includes an integrated card detection switch (normally open).
Electrical specifications: rated current 0.5 A per terminal, rated voltage 10 V per terminal, contact resistance 100 mΩ maximum (initial), and dielectric withstanding voltage 500 V AC for 1 minute. The connector operates over a temperature range of -25°C to +85°C and is rated for 5,000 insertion/removal cycles.
The connector is surface mount, right angle, with a height above board of 1.25 mm. Contacts are gold-plated with 0.30 µm thickness for reliable connectivity. The housing is made of synthetic resin, with stainless steel cover and ejector components. It supports automated mounting with embossed tape packaging (2,500 pieces per reel).
Environmental compliance: RoHS3 compliant, halogen-free, and lead-free (Pb-free). The SF72 series provides balanced EMI countermeasure through 8 hold-down points.
| Qty | Low | High |
|---|---|---|
| 2,500+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 8 positions total (6 signal contacts + 2 additional positions for hold-down and switch).
0.5 A per terminal.
10 V per terminal.
Surface mount, right angle.
-25°C to +85°C.
Push in, push out (push-push mechanism).
Yes, RoHS3 compliant, halogen-free, and Pb-free.
