SF56S006V4BR2000 JAE Electronics SF56S006V4BR2000 is a push-push type Micro SIM card connector with 8 positions (6 signal + 2 detection switch). It features surface mount right-angle mounting, 1.25mm height, and gold flash contacts.
Mfr Part #:

SF56S006V4BR2000

Available from 3 distributors
Mfr Name: JAE Electronics
JAE Electronics
JAE Electronics SF56S006V4BR2000 is a push-push type Micro SIM card connector with 8 positions (6 signal + 2 detection switch). It features surface mount right-angle mounting, 1.25mm height, and gold flash contacts.
✓ Total Stock: 2,670 pcs
$ Price Range: $0.61

SF56S006V4BR2000 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
970 pcs
On Request
970 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
970 pcs
On Request
970 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
730 pcs
On Request
730 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SF56S006V4BR2000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Card Type
Connector Type
Contact Finish
Contact Finish Thickness
Contact Resistance
Depth
Dielectric Withstanding Voltage
Durability
Features
Halogen Free
Height Above Board
Insertion, Removal Method
Lead Style
Medical Grade
Mounting Feature
Mounting Type
Number of Positions
Operating Temperature Range
Rated Current
Rated Voltage
Tape & Reel
Width
View Similar Products (0)

SF56S006V4BR2000 Description

Short technical summary and product information.

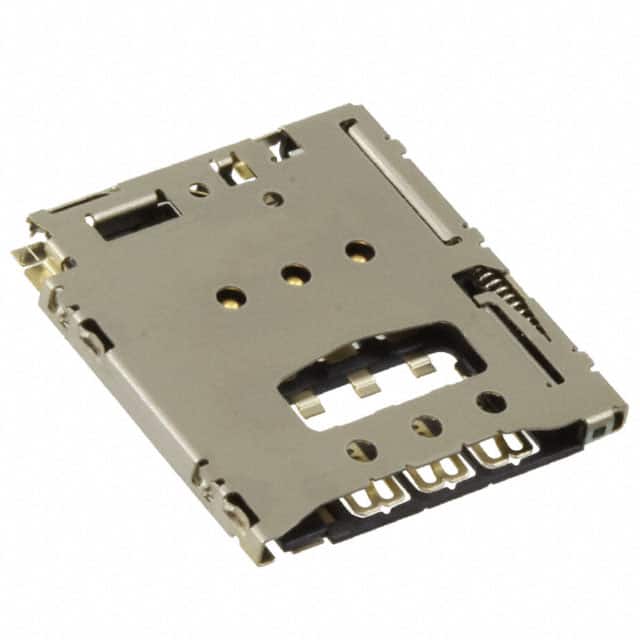

The SF56S006V4BR2000 from JAE Electronics is a push-push type Micro SIM card connector designed for space-constrained applications in smartphones and tablets. It offers a low profile of 1.25mm height with dimensions of 14.4mm width and 16.0mm depth, making it one of the industry's most compact push-push connectors.



This connector provides 6 signal contacts and 2 detection switch contacts (normally closed) to prevent incomplete insertion. It is rated for 0.5A per pin at 10V per pin, with a contact resistance of 100mΩ maximum initial. The dielectric withstanding voltage is AC 500Vr.m.s. for one minute.



The connector is designed for surface mount right-angle mounting and includes four hold-down points for good EMI performance. It supports automated mounting with embossed tape and reel packaging (2000 pieces per reel). The operating temperature range is -25°C to +85°C, and it is rated for 5000 insertion/removal cycles.



Materials include copper alloy contacts with gold plating (0.5μm minimum on contact area) and gold flash on terminal areas, with stainless steel for the cover frame and other components. The product is RoHS compliant and halogen-free certified.

SF56S006V4BR2000 Quick Information

Product Type: Memory Card Connector
Series: SF56
Canonical Name: JAE Electronics SF56S006V4BR2000 Micro SIM Card Connector, Push-Push, 8 Positions, SMT
Subcategory: Push-Push

SF56S006V4BR2000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): MSL 1 - Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SF56S006V4BR2000 Estimated Pricing

Qty Low High
2,000+ $0.61 $0.61

Estimated market price range - modelled values for guidance only, not live distributor offers.

SF56S006V4BR2000 Features

  • Push-push Micro SIM card ejection mechanism.
  • 8 positions: 6 signal + 2 detection switch.
  • Low profile 1.25mm height, compact footprint.
  • Rated 0.5A per pin at 10V per pin.
  • RoHS and halogen-free compliant.

SF56S006V4BR2000 Applications

  • Used in smartphones and tablet devices.
  • Suitable for low-profile memory card interfaces.
  • Ideal for space-constrained PCB designs.
  • Incorporates card detection for reliable insertion.

SF56S006V4BR2000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions on this connector?

The connector has 8 positions: 6 signal contacts and 2 detection switch contacts.

What is the mounting type for this connector?

It is surface mount, right angle mounting.

What is the rated current per pin?

The rated current is 0.5A per pin.

What is the rated voltage per pin?

The rated voltage is 10V per pin.

What is the operating temperature range?

The operating temperature range is -25°C to +85°C.

How many insertion/removal cycles is this connector rated for?

It is rated for 5000 cycles.

What card type does this connector support?

It supports Micro SIM cards.
