Mfr Part #:

SF56K006VBAR2000

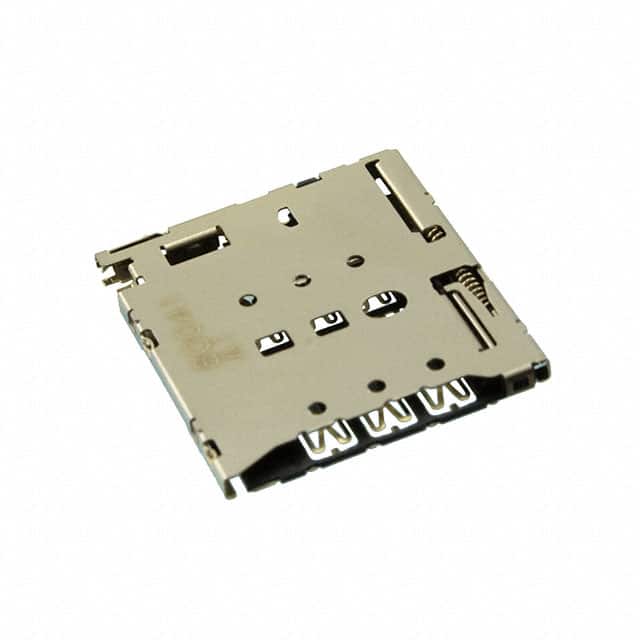

JAE Electronics SF56K006VBAR2000 is a Micro SIM card connector with push-push insertion and removal. It features 8 positions (6+2), right angle surface mount, and gold flash contacts.

✓ Total Stock: 2,068 pcs

$ Price Range: $0.69 - $1.25

SF56K006VBAR2000 Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	1,033 pcs On Request	1033 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
MW.FEP S.p.A. ✓ Non-Authorised Inventory information	1,033 pcs On Request	1033 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	2 pcs On Request	2 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SF56K006VBAR2000 Description

Short technical summary and product information.

The JAE Electronics SF56K006VBAR2000 is a Micro SIM card connector designed for push-push (push in, push out) card insertion and removal. It offers 8 positions configured as 6+2, with a right angle surface mount mounting style and a standard top mounting feature.

The connector includes a built-in card detection switch and has gold flash contact finish for reliable electrical performance. The height above board is 0.050 inches (1.28 mm), making it suitable for compact designs. The ejector is located on the right side.

This connector is intended for use in applications requiring a secure Micro SIM card interface. Its push-push mechanism simplifies user card insertion and ejection without requiring additional hardware.

SF56K006VBAR2000 Quick Information

Product Type: SIM Card Connector

Series: SF56K

Canonical Name: JAE Electronics SF56K006VBAR2000 Micro SIM Card Connector, Push-Push, Right Angle SMT

Subcategory: Micro SIM

SF56K006VBAR2000 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

SF56K006VBAR2000 Estimated Pricing

Qty	Low	High
1+	$1.25	$1.25
10+	$1.06	$1.06
25+	$0.95	$0.95
100+	$0.90	$0.90
250+	$0.85	$0.85
500+	$0.80	$0.80
1,000+	$0.77	$0.77
2,000+	$0.73	$0.73
4,000+	$0.69	$0.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

SF56K006VBAR2000 Features

Micro SIM push-push connector with card detect switch.
Right angle surface mount mounting style.
Gold flash contacts for reliable connectivity.
8 positions configured as 6 plus 2.
Height above board of 0.050 inches (1.28 mm).

SF56K006VBAR2000 Applications

Used in mobile devices requiring Micro SIM connectivity.
Suitable for IoT modules with SIM card interfaces.
Ideal for embedded systems with space constraints.
Applicable in consumer electronics with push-push card retention.

SF56K006VBAR2000 FAQs

7 frequently asked questions generated from this part’s specifications.

What type of card does this connector accept?

This connector accepts Micro SIM cards.

What is the mounting style of this connector?

Surface mount, right angle.

How many positions does this connector have?

8 positions (6 + 2).

What is the insertion and removal method?

Push in, push out (push-push).

Does this connector include a card detect switch?

Yes, it includes a switch feature.

What is the height above board?

0.050 inches (1.28 mm).

What is the contact finish?

Gold flash.

Category	PC Card Sockets
Manufacturer Name	JAE Electronics
Card Type	Micro SIM
Connector Type	Connector and Ejector
Contact Finish	Gold
Contact Finish Thickness	Flash
Ejector Side	Right
Features	Switch
Height Above Board	0.050" (1.28mm)
Insertion, Removal Method	Push In, Push Out
Mounting Feature	Normal, Standard - Top
Mounting Type	Surface Mount, Right Angle
Number of Positions	8 (6 + 2)
Tape & Reel	Yes
