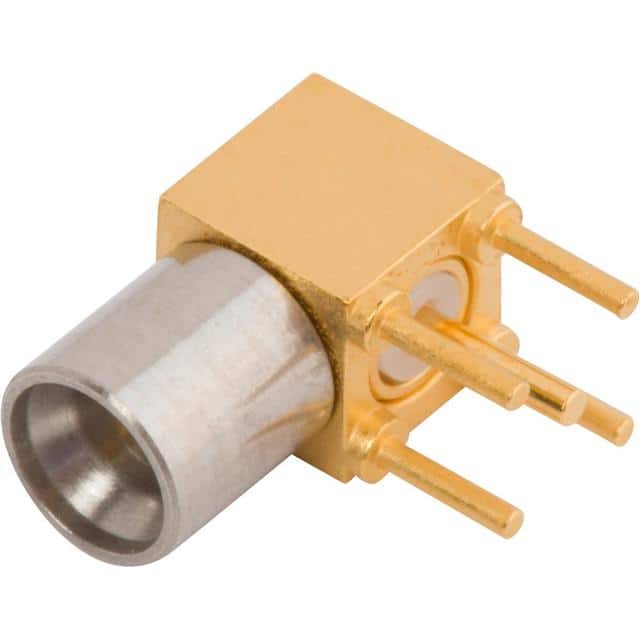

SF1212-6001 SMP plug connector with male pin, right angle through hole mounting, 50 Ohm impedance, and 20 GHz maximum frequency. Features snap-on fastening and limited detent.
Mfr Part #:

SF1212-6001

Available from 1 distributors
Mfr Name: SV Microwave, Inc.
SV Microwave, Inc.
SMP plug connector with male pin, right angle through hole mounting, 50 Ohm impedance, and 20 GHz maximum frequency. Features snap-on fastening and limited detent.
✓ Total Stock: 50 pcs
$ Price Range: $31.60 - $41.89

SF1212-6001 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SF1212-6001 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Center Contact Material
Connector Style
Connector Type
Contact Termination
Fastening Type
Features
Frequency
Housing Color
Impedance
Mounting Type
Number of Ports
Shield Termination
Tape & Reel
View Similar Products (0)

SF1212-6001 Description

Short technical summary and product information.

The SF1212-6001 is an SMP coaxial connector plug with a male pin contact, designed for right angle through hole mounting. It offers a characteristic impedance of 50 Ohms and supports frequencies up to 20 GHz. The connector features a snap-on fastening mechanism with limited detent for secure mating. Contact and shield termination are both solder type, and the center contact is made of beryllium copper. The housing is silver in color. This connector is suitable for RF applications requiring a compact, high-frequency interconnect.

SF1212-6001 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: SMP Plug, Male Pin, Right Angle, Through Hole, 50 Ohm, 20 GHz
Subcategory: SMP Connector

SF1212-6001 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SF1212-6001 Estimated Pricing

Qty Low High
1+ $41.89 $41.89
10+ $36.43 $36.43
20+ $34.85 $34.85
50+ $31.61 $31.61
100+ $31.60 $31.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

SF1212-6001 Features

  • SMP plug connector with male pin contact.
  • 50 Ohm characteristic impedance.
  • 20 GHz maximum operating frequency.
  • Right angle through hole mounting.
  • Snap-on fastening with limited detent.

SF1212-6001 Applications

  • Used in RF and microwave circuit board interconnects.
  • Suitable for high-frequency signal transmission up to 20 GHz.
  • Ideal for compact PCB designs requiring right angle connectors.
  • Common in telecommunications and test equipment.

SF1212-6001 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the mounting type of the SF1212-6001?

Through hole, right angle.

What is the impedance of this connector?

50 Ohm.

What is the maximum frequency rating?

20 GHz.

What connector style is the SF1212-6001?

SMP.

What fastening type does this connector use?

Snap-on with limited detent.

What is the center contact material?

Beryllium copper.

How many ports does this connector have?

1.
