| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28,136 pcs
|
28136 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Power Line Protection | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Unidirectional Channels | |
| Voltage | |
| Voltage - Clamping (Typ) @ Ipp | |
| Voltage - Reverse Standoff (Typ) |

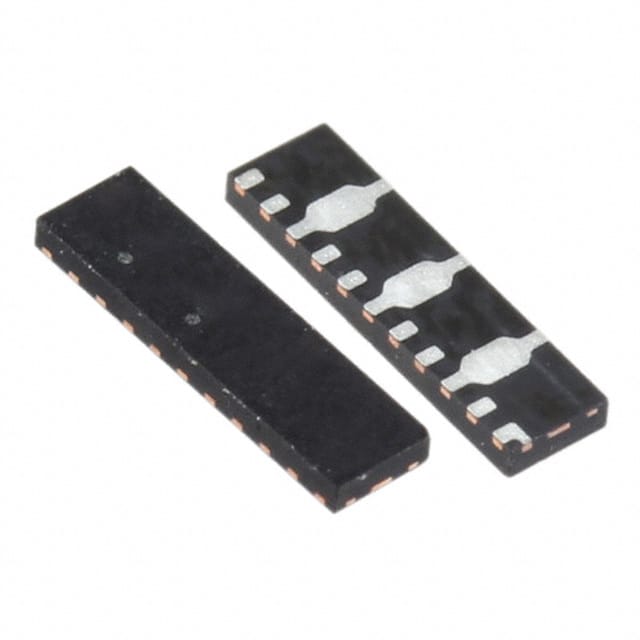

The SESD8008MUTAG from On Semiconductor is an 8-channel unidirectional TVS diode array designed for general purpose ESD protection. It features a reverse standoff voltage of 3.3V and a typical breakdown voltage of 8.1V. The diode clamps transients at a typical voltage of 8.1V and can handle peak pulse currents up to 16A (10/1000µs waveform). With a low capacitance of 0.3pF at 1MHz, it is suitable for protecting high-speed data lines. The device is surface mount packaged in a 14-UFDFN case, with the supplier device package being 14-UDFN (5.5x1.5). It operates over a wide temperature range from -55°C to 125°C. The SESD8008MUTAG is RoHS3 compliant (unverified) and REACH unaffected (unverified), with an MSL rating of 1 (unlimited). This component is not intended for power line protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.37 | $1.37 |
| 10+ | $0.86 | $0.86 |
| 100+ | $0.57 | $0.57 |
| 500+ | $0.44 | $0.44 |
| 1,000+ | $0.40 | $0.40 |
| 3,000+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The reverse standoff voltage is 3.3V.
The minimum breakdown voltage is 8.1V.
The typical clamping voltage is 8.1V.
The peak pulse current is 16A for a 10/1000µs waveform.
It comes in a 14-UFDFN package, specifically 14-UDFN (5.5x1.5).
It has 8 unidirectional channels.
The capacitance is 0.3pF at 1MHz.
