| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20,013 pcs
|
20013 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Automotive Grade | |
| Bidirectional Channels | |
| Capacitance @ Frequency | |
| Current | |
| Mounting Type | |
| Operating Temperature | |
| Package Description | |
| Power Line Protection | |
| Supplier Device Package | |
| Type | |
| Voltage |

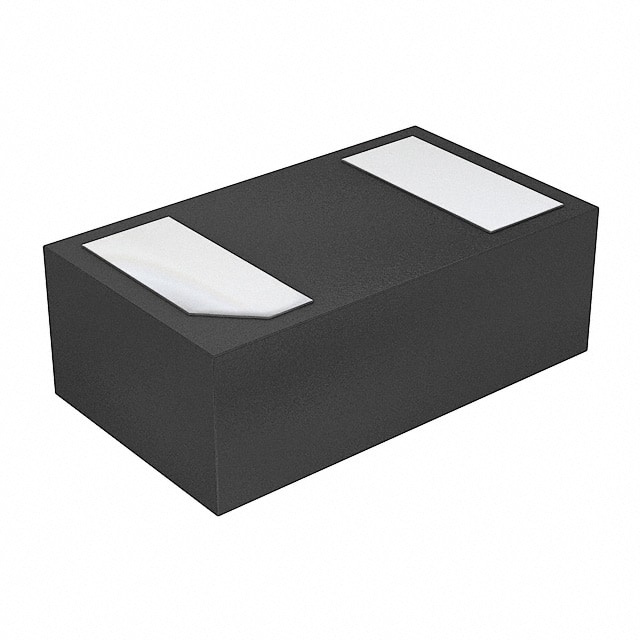

The Littelfuse SESD0402X1BN-0015-096 is a Zener type TVS Diode with a typical voltage of 14V and a surge current capability of 2.5A at 8/20µs. It offers a low capacitance of 0.15pF at 3GHz, making it suitable for high-frequency applications.
This TVS diode is designed for surface mount installation in a compact 0402 package. It operates within a temperature range of -55°C to 125°C (TA) and is suitable for applications including Automotive and HDMI.
With a single bidirectional channel and no specific power line protection, this component is ideal for protecting sensitive electronics from transient voltage events in space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
Zener.
14V.
2.5A (8/20µs).
0.15pF at 3GHz.
Yes, it has 1 bidirectional channel.
-55°C to 125°C.
0402 surface mount package (2-XDFN).
