| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
340 pcs
|
340 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Failure Rate | |
| Inductance | |
| Mounting Type | |
| Shielding | |
| Termination Style |

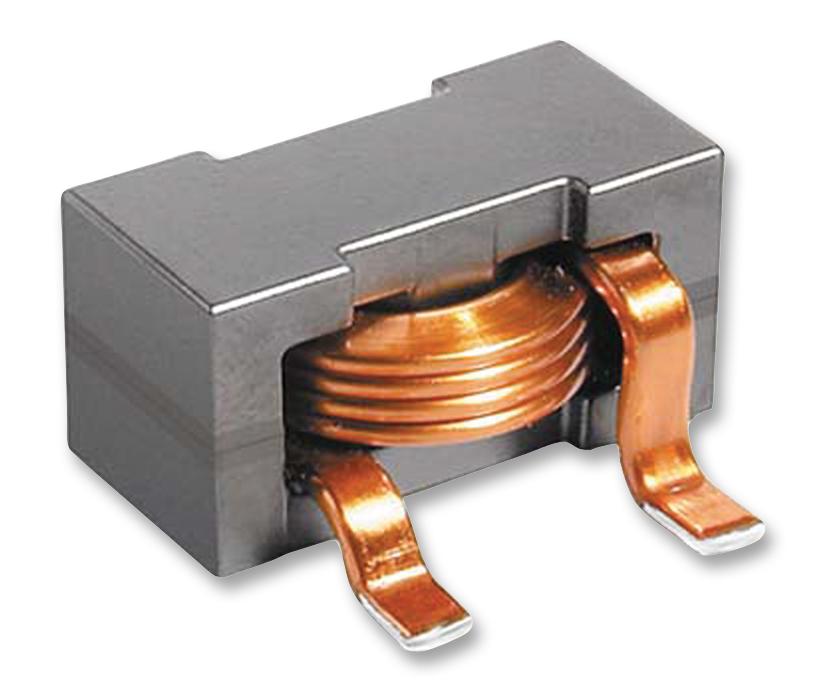

The Coilcraft SER2011-202MLD is a shielded power inductor from the SER2000 series, designed for high-current power supply applications. It features a ferrite core and tin-silver over copper termination, offering resistance to soldering heat. This SMD inductor provides an inductance of 2µH with a tolerance of ±20%.
Key electrical characteristics include a saturation current (Isat) of 37A and an RMS current (Irms) of 40A, with a maximum DC resistance of 0.00134 Ohm. The flat wire windings contribute to exceptionally low DCR. The component measures 19.18mm x 9.27mm x 10.67mm and is supplied on a cut tape.
Applications for this inductor include industrial, power management, and automotive sectors. It is designed for surface mounting and is compatible with PCB washing using pure water or alcohol.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.18 | $0.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 µH with ±20% tolerance.
Saturation current is 37 A, RMS current is 40 A.
Maximum DC resistance is 0.00134 Ω.
The package measures 19.18 mm x 9.27 mm x 10.67 mm, SMD mounting, tape and reel packaging.
Yes, it is shielded.
Ferrite.
SER2000 series.
