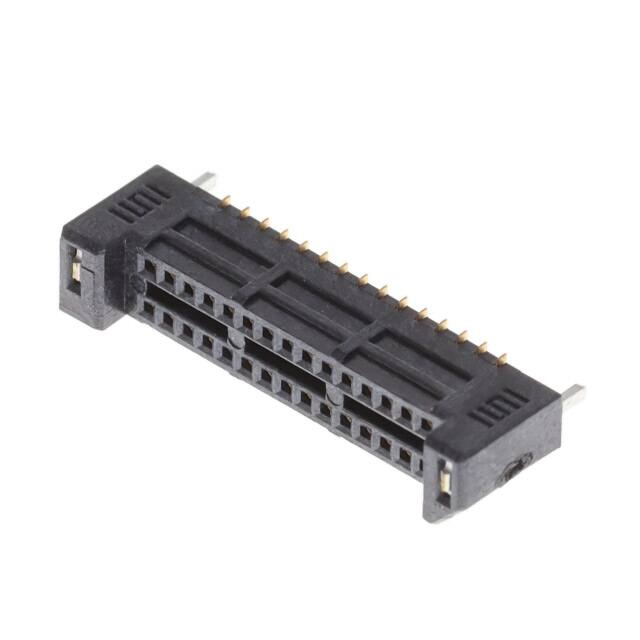

The Samtec SEM-115-02-03.0-H-D-WT-K-TR is a .8mm pitch Tiger Eye Micro SMT board-to-board receptacle connector. It features 30 positions arranged in 2 rows with all positions loaded. The connector uses a female socket contact type with a gold finish of 30.0µin (0.76µm).
This receptacle is designed for vertical orientation and surface mount termination with solder. It supports mated stacking heights of 6mm, 7mm, and 10mm. The insulation is black with a height of 4.50mm. The connector includes pick and place and solder retention features, as well as a Weld Tab and K Pad for enhanced mechanical retention.
The contact system is Samtec's Tiger Eye, a polarized double row multi-finger Beryllium Copper contact system. Electrical ratings include a current rating of 2.6A per contact (nominal) with a manufacturer maximum of 2.9A, and a voltage rating of 235 VAC / 332 VDC max. The operating temperature range is -55°C to 125°C.
The part is packaged in Tape & Reel with a standard package quantity of 675 pieces. It is RoHS3 compliant (unverified), REACH unaffected (unverified), and has an MSL of 1 Unlimited (unverified).
| Qty | Low | High |
|---|---|---|
| 675+ | $7.88 | $7.88 |
| 1,350+ | $6.53 | $6.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
0.80mm (0.0315").
30 positions, all loaded, in 2 rows.
2.6A per contact (nominal) with a manufacturer maximum of 2.9A.
235 VAC / 332 VDC max.
Surface mount with solder termination.
