| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Lead Spacing | |
| Mounting Type | |
| Operating Temperature | |
| Tolerance |

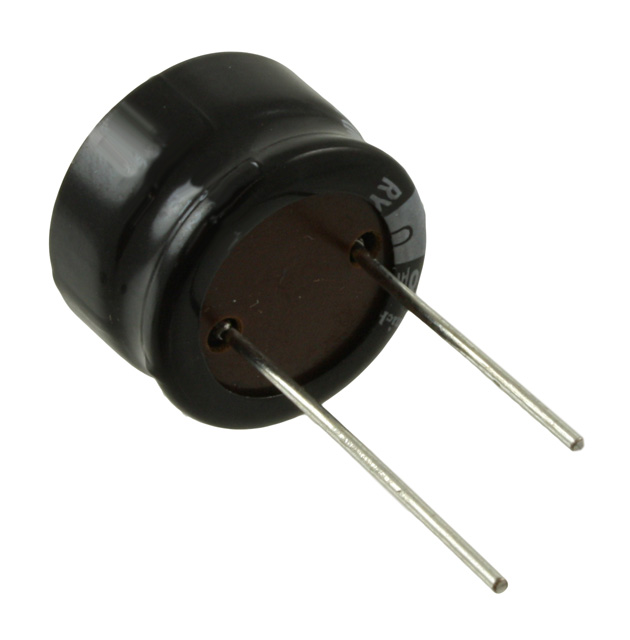

The SEK471M050ST is a 470 µF, 50V aluminum electrolytic capacitor from Cornell Dubilier Electronics (CDE). It has a tolerance of ±20% and is designed for through-hole mounting in a radial leaded package.
Electrically, this capacitor can handle ripple currents of 540 mA at 120 Hz and 810 mA at 10 kHz. Its operating temperature range spans -55°C to 105°C, with a rated lifetime of 2000 hours at 105°C. These characteristics make it suitable for power supply filtering and other high-ripple-current applications.
The component measures 20.00 mm in diameter, 14.50 mm in seated height, and has a lead spacing of 10.00 mm. It is packaged in a standard bulk quantity of 300 pieces.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.16 | $1.16 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 50 V.
It comes in a radial leaded package with through-hole mounting. The body diameter is 20.00 mm, seated height is 14.50 mm, and lead spacing is 10.00 mm.
The operating temperature range is -55°C to 105°C.
The capacitance is 470 µF with a tolerance of ±20%.
The ripple current is 540 mA at 120 Hz and 810 mA at 10 kHz.
The capacitor has a lifetime of 2000 hours at 105°C.
