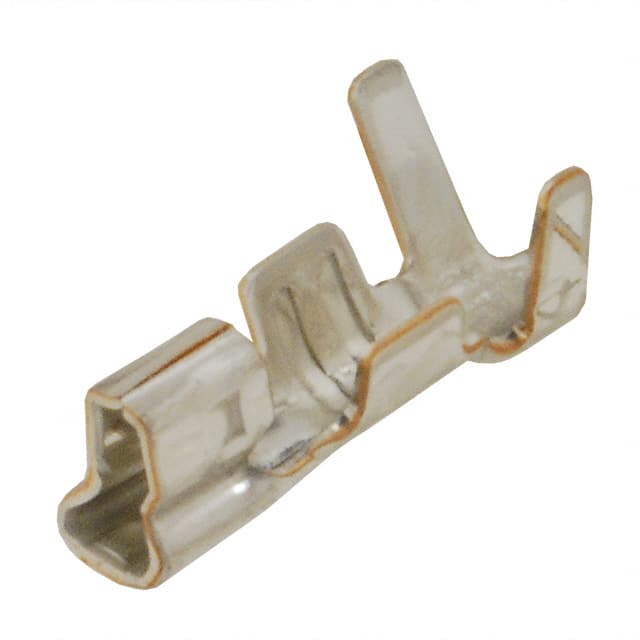

The JST SEH-001T-P0.6 is a crimp-type socket contact designed for use with JST EH series connectors. It is rated for a current of 1 A and a voltage of 16 V, making it suitable for low-power signal and power applications.
This contact accepts wire gauges from 22 to 30 AWG and accommodates an insulation diameter range of 0.6 mm to 1.2 mm. The contact is finished with tin, providing good solderability and corrosion resistance. It features a low-profile design to save space on the PCB.
The contact offers a maximum initial contact resistance of 10 mΩ and a minimum insulation resistance of 1000 MΩ. It can withstand 100 V AC for one minute without breakdown. The operating temperature range is -25°C to +85°C, including temperature rise due to current.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.15 | $0.15 |
| 10+ | $0.05 | $0.05 |
| 25+ | $0.05 | $0.05 |
| 100+ | $0.04 | $0.04 |
| 250+ | $0.03 | $0.03 |
| 1,000+ | $0.03 | $0.03 |
| 2,500+ | $0.03 | $0.03 |
| 5,000+ | $0.02 | $0.02 |
| 9,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 1 A.
The voltage rating is 16 V.
It accepts 22-30 AWG wire.
The operating temperature range is -25°C to +85°C.
Initial contact resistance is 10 mΩ maximum; after environmental tests it is 15 mΩ maximum.
The insulation resistance is 1000 MΩ minimum.
It can withstand 100 V AC for one minute.
