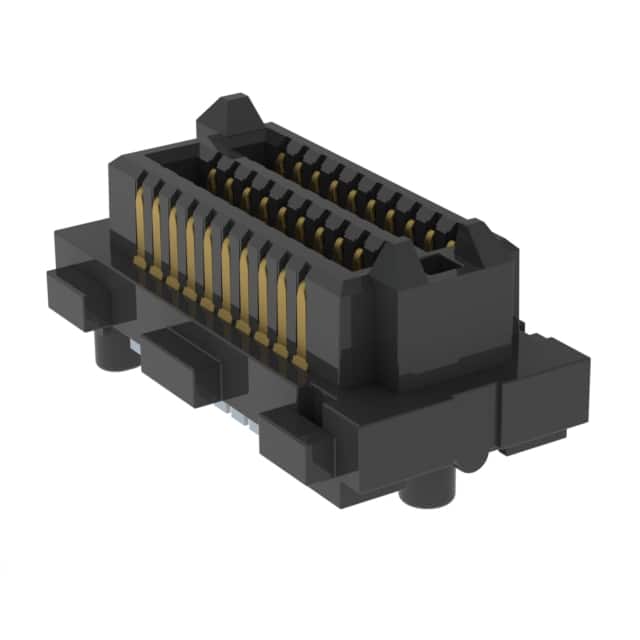

SEAM8-10-S02.0-S-06-2-K The SEAM8-10-S02.0-S-06-2-K is a 60-position high density array male connector from Samtec's SEARAY series, featuring a 0.80mm pitch, surface mount termination, and gold plated contacts.
Mfr Part #:

SEAM8-10-S02.0-S-06-2-K

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The SEAM8-10-S02.0-S-06-2-K is a 60-position high density array male connector from Samtec's SEARAY series, featuring a 0.80mm pitch, surface mount termination, and gold plated contacts.
✓ Total Stock: 278 pcs
$ Price Range: $8.60

SEAM8-10-S02.0-S-06-2-K Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
268 pcs
On Request
268 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SEAM8-10-S02.0-S-06-2-K Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Data Rate
Features
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
SVHC Present
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

SEAM8-10-S02.0-S-06-2-K Description

Short technical summary and product information.

The SEAM8-10-S02.0-S-06-2-K is a 60-position (6 rows) high density array plug from Samtec's SEARAY series. It uses a 0.80mm (0.0315") pitch grid, offering significant board space savings compared to 1.27mm pitch arrays. This surface mount connector is rated for 1.3A per pin (10 adjacent pins powered) and 220 VAC / 311 VDC. It supports data rates up to 28 Gbps NRZ and 56 Gbps PAM4.



This connector features Samtec's Edge Rate contact system, providing robust electrical performance. It includes a board guide for alignment and pick-and-place features for automated assembly. The insulator is black LCP, and contacts are copper alloy with 30µin (0.76µm) gold plating. The connector is designed for a mated stacking height of 7mm.



Packaging is Tape & Reel, and the termination is lead-free solder crimp. The operating temperature range is -55°C to +125°C. This part is part of the SEARAY family, optimized for high-speed board-to-board mezzanine applications.

SEAM8-10-S02.0-S-06-2-K Quick Information

Product Type: High Density Array Connector
Series: SEAM8
Canonical Name: Samtec Inc. SEAM8 Series High Density Array Plug, 60 Positions, 0.80mm Pitch, Surface Mount
Subcategory: Plug, Male Pins

SEAM8-10-S02.0-S-06-2-K Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

SEAM8-10-S02.0-S-06-2-K Estimated Pricing

Qty Low High
125+ $8.60 $8.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

SEAM8-10-S02.0-S-06-2-K Features

  • 60 positions with 6 rows on 0.80mm pitch.
  • Rated for 1.3A per pin and 220VAC/311VDC.
  • Supports data rates up to 28 Gbps NRZ/56 Gbps PAM4.
  • Surface mount with gold plated contacts (30µin).
  • Includes board guide and pick-and-place features.

SEAM8-10-S02.0-S-06-2-K Applications

  • Ideal for high-speed board-to-board connections.
  • Suitable for mezzanine stacking applications with 7mm height.
  • Used in data center and networking equipment.
  • Compatible with SEAF8 series receptacles.

SEAM8-10-S02.0-S-06-2-K FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SEAM8-10-S02.0-S-06-2-K have?

60 positions arranged in 6 rows.

What is the pitch of this connector?

0.80mm (0.0315 inches).

What is the current rating per pin?

1.3A per pin when 10 adjacent pins are powered.

What is the voltage rating?

220 VAC and 311 VDC.

What is the mounting type?

Surface mount.

What data rates are supported?

28 Gbps NRZ and 56 Gbps PAM4.

What is the operating temperature range?

-55°C to +125°C.
