SEAM-50-03.5-S-10-2-A Samtec SEAM-50-03.5-S-10-2-A is a 500-position, 10-row, 1.27mm pitch high-density array plug for surface mount applications. It features gold-plated contacts and a board guide.
Mfr Part #:

SEAM-50-03.5-S-10-2-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec SEAM-50-03.5-S-10-2-A is a 500-position, 10-row, 1.27mm pitch high-density array plug for surface mount applications. It features gold-plated contacts and a board guide.
✓ Total Stock: 45 pcs
$ Price Range: $29.01

SEAM-50-03.5-S-10-2-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
45 pcs
On Request
45 pcs On Request 1 On Request On Request NDC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SEAM-50-03.5-S-10-2-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Data Rate
Features
Halogen Free
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Standards
Tape & Reel
Voltage Rating
View Similar Products (0)

SEAM-50-03.5-S-10-2-A Description

Short technical summary and product information.

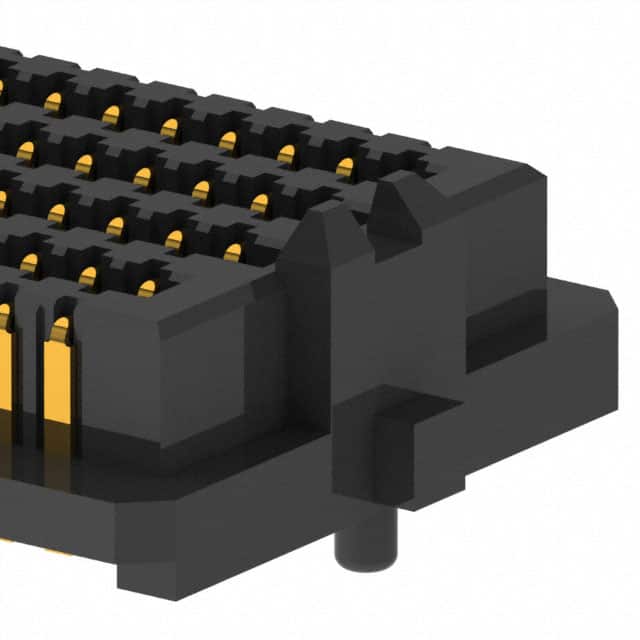

The Samtec SEAM-50-03.5-S-10-2-A is a high-density open-pin-field array connector from the SEARAY family. It offers 500 positions arranged in 10 rows on a 1.27mm pitch, providing maximum routing flexibility for single-ended or differential pair configurations. The connector uses the Edge Rate contact system, designed for high mating cycles and 56 Gbps PAM4 performance.



This male plug is surface mount compatible and features a board guide for alignment. The contacts are gold-plated with 30µ" gold on the contact area and matte tin on the solder tail, over a copper alloy base. The insulator is black LCP. The connector supports a wide operating temperature range of -55°C to +125°C and is rated for 2.7A per pin (10 pins powered) and 240 VAC/339 VDC maximum.



The SEAM-50-03.5-S-10-2-A is lead-free solderable and packaged in trays of 33. It complies with VITA 47, VITA 57.1 FMC, VITA 57.4 FMC+, VITA 74 VNX, and PISMO 2 standards. Mated stacking heights range from 8.5mm to 11.5mm.

SEAM-50-03.5-S-10-2-A Quick Information

Product Type: High Density Array Connector
Series: SEAM
Canonical Name: Samtec SEARAY SEAM-50-03.5-S-10-2-A High-Density Open-Pin-Field Array Connector
Subcategory: Mezzanine Connector

SEAM-50-03.5-S-10-2-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Lead-Free Solderable

SEAM-50-03.5-S-10-2-A Estimated Pricing

Qty Low High
33+ $29.01 $29.01

Estimated market price range - modelled values for guidance only, not live distributor offers.

SEAM-50-03.5-S-10-2-A Features

  • 500 positions in 10 rows at 1.27mm pitch.
  • 56 Gbps PAM4 high-speed performance.
  • Gold-plated contacts with 30µ" gold thickness.
  • Surface mount with board guide for alignment.
  • Lead-free solderable with wide temperature range.

SEAM-50-03.5-S-10-2-A Applications

  • High-speed board-to-board mezzanine connections.
  • Single-ended or differential pair signal routing.
  • Power, signal, and ground distribution in arrays.
  • VITA 57.1 FMC and FMC+ carrier cards.
  • PISMO 2 memory module interfaces.

SEAM-50-03.5-S-10-2-A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the SEAM-50-03.5-S-10-2-A connector?

The pitch is 1.27mm (0.050").

How many positions does the SEAM-50-03.5-S-10-2-A have?

It has 500 positions arranged in 10 rows.

What is the current rating of the SEAM-50-03.5-S-10-2-A?

The current rating is 2.7A per pin when 10 pins are powered.

What is the voltage rating of the SEAM-50-03.5-S-10-2-A?

The maximum voltage rating is 240 VAC or 339 VDC.

What is the mounting type for the SEAM-50-03.5-S-10-2-A?

It is a surface mount connector.

What is the operating temperature range of the SEAM-50-03.5-S-10-2-A?

The operating temperature range is -55°C to +125°C.

What standards does the SEAM-50-03.5-S-10-2-A comply with?

It complies with VITA 47, VITA 57.1 FMC, VITA 57.4 FMC+, VITA 74 VNX, and PISMO 2.
