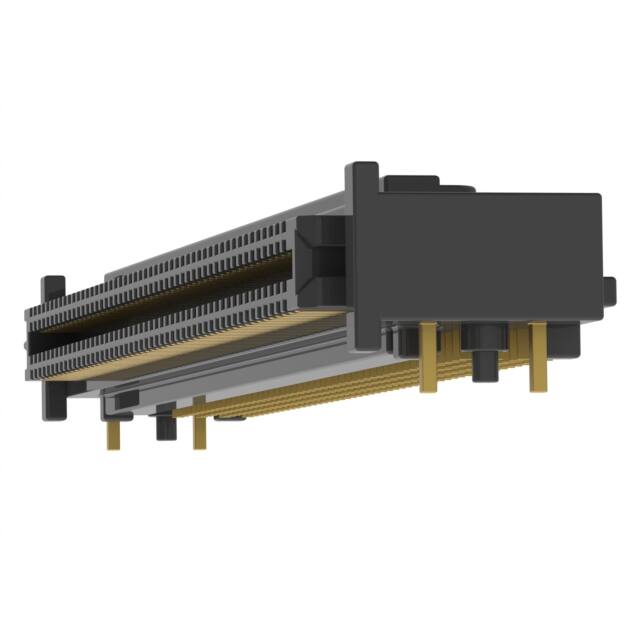

SEAM-50-01-S-04-2-RA-K-TR Samtec SEAM-50-01-S-04-2-RA-K-TR is a 200-position, 4-row, right-angle surface mount high-density array header connector with 1.27mm pitch. It features gold-plated contacts, board guide, and pick-and-place capabilities, supporting data rates up to 56 Gbps PAM4.
Mfr Part #:

SEAM-50-01-S-04-2-RA-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec SEAM-50-01-S-04-2-RA-K-TR is a 200-position, 4-row, right-angle surface mount high-density array header connector with 1.27mm pitch. It features gold-plated contacts, board guide, and pick-and-place capabilities, supporting data rates up to 56 Gbps PAM4.
✓ Total Stock: 8 pcs
$ Price Range: $25.80 - $27.64

SEAM-50-01-S-04-2-RA-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
8 pcs
On Request
8 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SEAM-50-01-S-04-2-RA-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Halogen Free
Height Above Board
Insulator Material
Lead Style
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Tape & Reel
Voltage Rating
View Similar Products (0)

SEAM-50-01-S-04-2-RA-K-TR Description

Short technical summary and product information.

The Samtec SEAM-50-01-S-04-2-RA-K-TR is a high-density array header connector from the SEARAY series, designed for high-speed board-to-board applications. It offers 200 positions arranged in 4 rows at a 1.27mm (0.050") pitch, with a right-angle surface mount configuration. The connector uses the Edge Rate contact system, which provides robust signal integrity and supports data rates up to 56 Gbps PAM4.



Electrical ratings include a maximum current of 1.9A per pin (with 10 pins powered) and a voltage rating of 240 VAC / 339 VDC. The operating temperature range spans -55°C to +125°C, making it suitable for demanding environments. Contacts are gold-plated with 30µin (0.76µm) thickness over a copper alloy base, and the insulator is black LCP.



The connector includes features such as a board guide and pick-and-place pads for automated assembly. It is packaged in tape and reel with a standard quantity of 175 pieces per reel. The part is RoHS and REACH compliant, with an MSL rating of 1 (unlimited). This header is ideal for mezzanine, coplanar, and right-angle interconnects in telecom, networking, and data center equipment.

SEAM-50-01-S-04-2-RA-K-TR Quick Information

Product Type: High-Density Array Header Connector
Series: SEAM-RA
Canonical Name: Samtec SEARAY High-Speed 56Gbps Array Header Connector, 200 Position, 4 Row, Right Angle, Surface Mount
Subcategory: Right-Angle Header

SEAM-50-01-S-04-2-RA-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

SEAM-50-01-S-04-2-RA-K-TR Estimated Pricing

Qty Low High
175+ $27.64 $27.64
350+ $25.80 $25.80

Estimated market price range - modelled values for guidance only, not live distributor offers.

SEAM-50-01-S-04-2-RA-K-TR Features

  • 200-position, 4-row high-density array connector.
  • Right-angle surface mount design with 1.27mm pitch.
  • Gold-plated contacts with 30µin gold thickness.
  • Supports data rates up to 56 Gbps PAM4.
  • Rugged Edge Rate contact system for high mating cycles.

SEAM-50-01-S-04-2-RA-K-TR Applications

  • Used in high-speed board-to-board mezzanine connections.
  • Ideal for differential pair and single-ended signal routing.
  • Suitable for applications requiring 56 Gbps PAM4 performance.
  • Common in telecom, networking, and data center equipment.

SEAM-50-01-S-04-2-RA-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

200 positions.

What is the pitch?

1.27mm (0.050").

What is the current rating?

1.9A maximum per pin (10 pins powered).

What is the voltage rating?

240 VAC / 339 VDC maximum.

What is the mounting type?

Surface mount, right angle.

What is the maximum data rate?

56 Gbps PAM4.

What is the operating temperature range?

-55°C to +125°C.
