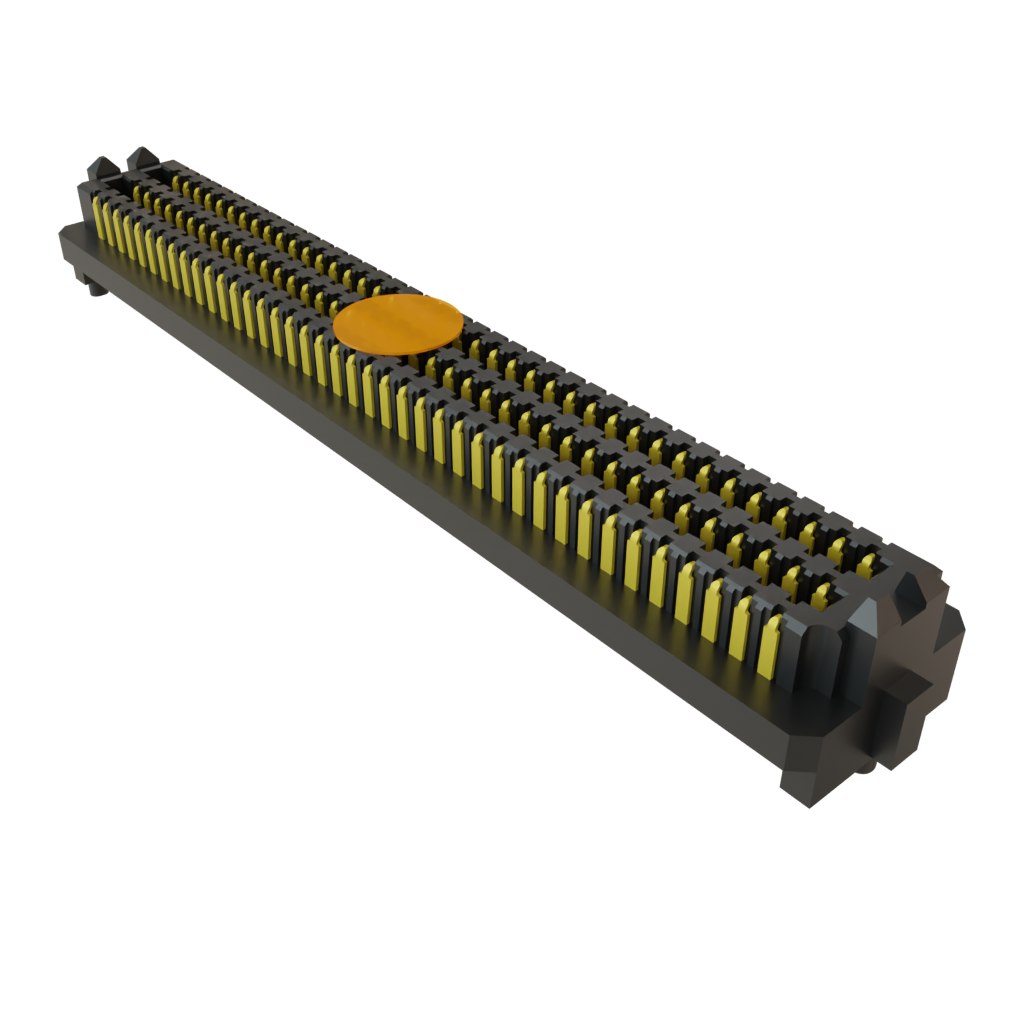

SEAM-40-03.5-S-06-2-A-K-TR The Samtec SEAM-40-03.5-S-06-2-A-K-TR is a 240-position high density array connector with a 1.27mm pitch. It features a surface mount design and a gold contact finish.
Mfr Part #:

SEAM-40-03.5-S-06-2-A-K-TR

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
The Samtec SEAM-40-03.5-S-06-2-A-K-TR is a 240-position high density array connector with a 1.27mm pitch. It features a surface mount design and a gold contact finish.
✓ Total Stock: 16 pcs
$ Price Range: $1.00

SEAM-40-03.5-S-06-2-A-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Akira Global ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SEAM-40-03.5-S-06-2-A-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Current Rating
Features
Halogen Free
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Operating Temperature
Operating Temperature Range
Pitch
SVHC Present
Tape & Reel
Voltage Rating
View Similar Products (0)

SEAM-40-03.5-S-06-2-A-K-TR Description

Short technical summary and product information.

The Samtec SEAM-40-03.5-S-06-2-A-K-TR is a high-density array connector designed for board-to-board applications. It offers 240 positions with a 1.27mm (0.050") pitch and a surface mount configuration.



This connector utilizes the Edge Rate® contact system, optimized for high-speed signal integrity performance up to 56 Gbps PAM4. The contact finish is 30µin gold over nickel, ensuring durability and reliable conductivity. The connector has a height above board of 0.240" (6.10mm) and supports various mated stacking heights.



Key features include board guide and pick and place capabilities, facilitating automated assembly. The SEAM series is also qualified for severe environments and extended life product certification to 5,000 mating cycles. It operates within a temperature range of -55°C to +125°C.



This connector supports high-speed protocols such as Ethernet, PCI Express®, Fibre Channel, and InfiniBand™. It is designed for applications requiring high mating cycles and robust signal integrity.

SEAM-40-03.5-S-06-2-A-K-TR Quick Information

Product Type: Array Connector
Series: SEAM
Canonical Name: Samtec Inc. SEAM-40-03.5-S-06-2-A-K-TR High Density Array Plug Connector, 240 Positions, 1.27mm Pitch, Surface Mount
Subcategory: High Density Array

SEAM-40-03.5-S-06-2-A-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SEAM-40-03.5-S-06-2-A-K-TR Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

SEAM-40-03.5-S-06-2-A-K-TR Features

  • 240 positions with 1.27mm pitch.
  • Surface mount design with pick and place.
  • 30µin gold contact finish for durability.
  • Supports 56 Gbps PAM4 high-speed protocols.
  • Extended life product certified to 5,000 cycles.

SEAM-40-03.5-S-06-2-A-K-TR Applications

  • Ideal for high-speed board-to-board connections.
  • Suitable for Ethernet and PCI Express applications.
  • Used in systems requiring high mating cycles.
  • Designed for severe environment applications.

SEAM-40-03.5-S-06-2-A-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the SEAM-40-03.5-S-06-2-A-K-TR connector?

The pitch of the SEAM-40-03.5-S-06-2-A-K-TR connector is 1.27mm (0.050").

How many positions does the SEAM-40-03.5-S-06-2-A-K-TR connector have?

The SEAM-40-03.5-S-06-2-A-K-TR connector has 240 positions.

What is the mounting type for this array connector?

The mounting type for this array connector is Surface Mount.

What is the current rating for the SEAM-40-03.5-S-06-2-A-K-TR?

The current rating is 2.7 A when 10 pins are powered.

What is the voltage rating of the SEAM-40-03.5-S-06-2-A-K-TR connector?

The voltage rating is 240 VAC/339 VAC.

What is the operating temperature range for this connector?

The operating temperature range is -55 °C to +125 °C.

What high-speed protocols does this connector support?

This connector supports high-speed protocols such as Ethernet, PCI Express®, Fibre Channel & InfiniBand™.
