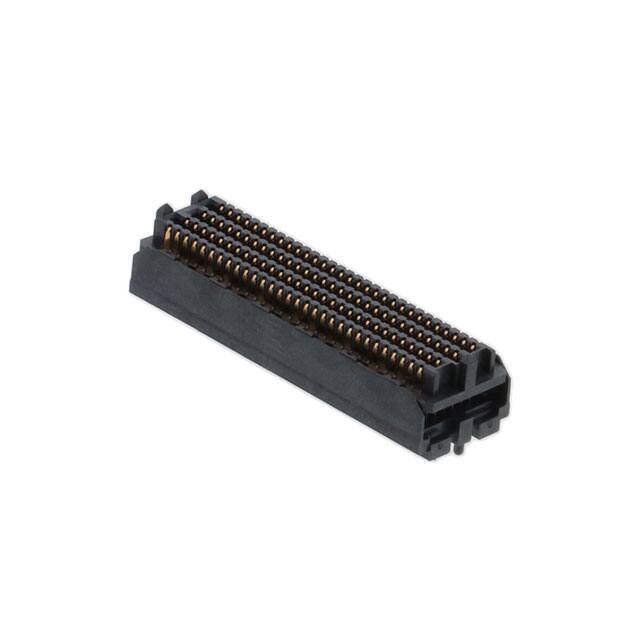

The SEAM-30-07.0-S-08-2-A-K-TR is a .050" (1.27mm) pitch SEARAY high-density array header from Samtec. It features 240 positions arranged in 8 rows, providing excellent design flexibility for single-ended or differential pair routing of signals, power, and ground. The connector uses Samtec's rugged Edge Rate contact system, which supports high-speed data rates up to 56 Gbps PAM4 and is rated for 5,000 mating cycles as an Extended Life Product.
This surface-mount header has a 7mm board height and is terminated with solder charge contacts. The contacts are gold over 50µ" nickel, ensuring reliable performance in demanding environments. The insulator is black LCP, and the operating temperature range spans -55°C to +125°C. Electrical ratings include 2.7A per pin (with 10 pins powered) and 240 VAC / 339 VDC.
The connector is supplied in tape and reel packaging (125 pieces per reel) and is RoHS compliant. It is designed for use in high-speed board-to-board mezzanine connections, data center equipment, networking hardware, and other applications requiring high pin count and signal integrity.
| Qty | Low | High |
|---|---|---|
| 1+ | $30.86 | $30.86 |
| 10+ | $28.48 | $28.48 |
| 25+ | $27.62 | $27.62 |
| 50+ | $24.81 | $24.81 |
| 125+ | $23.08 | $23.08 |
| 250+ | $22.35 | $22.35 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 240 positions.
The pitch is 0.050" (1.27mm).
The current rating is 2.7A per pin (with 10 pins powered).
The voltage rating is 240 VAC / 339 VDC.
The connector is surface mount (SMD).
The operating temperature range is -55°C to +125°C.
It is rated for 5,000 mating cycles (Extended Life Product certified).
