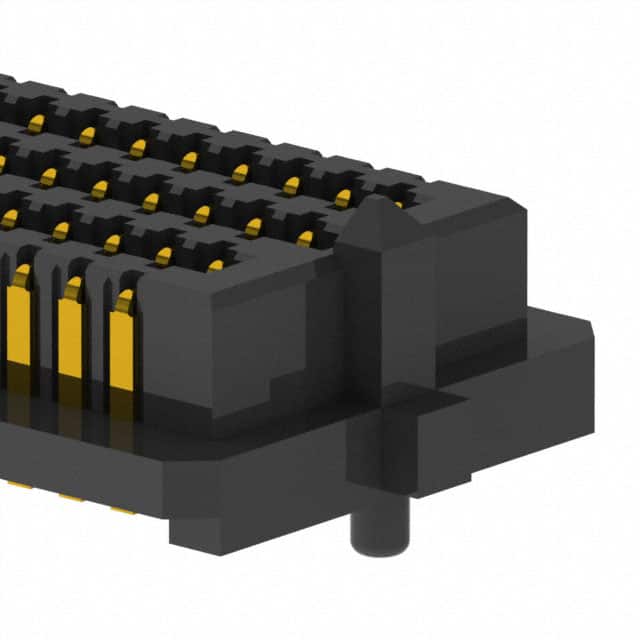

SEAM-30-03.5-S-08-2-A Samtec SEAM-30-03.5-S-08-2-A is a high density array male connector with 240 positions in 8 rows on 1.27mm pitch. Surface mount with gold contact finish.
Mfr Part #:

SEAM-30-03.5-S-08-2-A

Available from 1 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec SEAM-30-03.5-S-08-2-A is a high density array male connector with 240 positions in 8 rows on 1.27mm pitch. Surface mount with gold contact finish.
✓ Total Stock: 7 pcs
$ Price Range: $18.50

SEAM-30-03.5-S-08-2-A Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
7 pcs
On Request
7 pcs On Request 1 On Request On Request 2009 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SEAM-30-03.5-S-08-2-A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Features
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Mated Stacking Heights
Military Grade
Mounting Type
Number of Positions
Number of Rows
Operating Temperature Range
Pitch
Plating
Termination Style
Voltage Rating
View Similar Products (0)

SEAM-30-03.5-S-08-2-A Description

Short technical summary and product information.

The Samtec SEAM-30-03.5-S-08-2-A is a high density array male connector from the SEAM series, designed for board-to-board and mezzanine applications. It features 240 positions arranged in 8 rows with a 1.27mm pitch, enabling high-density interconnections in compact designs.



The connector is surface mount with gold contact finish (30.0µin) over copper alloy contacts, housed in a black LCP insulator. It supports mated stacking heights from 8.5mm to 11.5mm and includes a board guide feature for reliable alignment. The operating temperature range is -55°C to +125°C, with a current rating of 2.7A (10 pins powered) and voltage rating of 240 VAC / 339 VAC.

SEAM-30-03.5-S-08-2-A Quick Information

Product Type: High Density Array Connector
Series: SEAM
Canonical Name: SEAM-30-03.5-S-08-2-A High Density Array Male Connector
Subcategory: Mezzanine Connector

SEAM-30-03.5-S-08-2-A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

SEAM-30-03.5-S-08-2-A Estimated Pricing

Qty Low High
48+ $18.50 $18.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

SEAM-30-03.5-S-08-2-A Features

  • 240 positions in 8 rows.
  • 1.27mm pitch high density array.
  • Gold contact finish 30.0µin.
  • Surface mount with board guide.
  • Operating temperature -55°C to +125°C.

SEAM-30-03.5-S-08-2-A Applications

  • Board-to-board mezzanine connections.
  • High density interconnect systems.
  • VITA 47 and VITA 57.1 FMC compliant designs.
  • Industrial and military electronics.

SEAM-30-03.5-S-08-2-A FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SEAM-30-03.5-S-08-2-A have?

240 positions.

What is the pitch of this connector?

1.27mm (0.050").

What is the current rating?

2.7 A (10 pins powered).

What is the voltage rating?

240 VAC / 339 VAC.

What mounting type does this connector use?

Surface mount.

What is the operating temperature range?

-55°C to +125°C.

What mated stacking heights are supported?

8.5mm, 9.5mm, 10mm, 11mm, 11.5mm.
