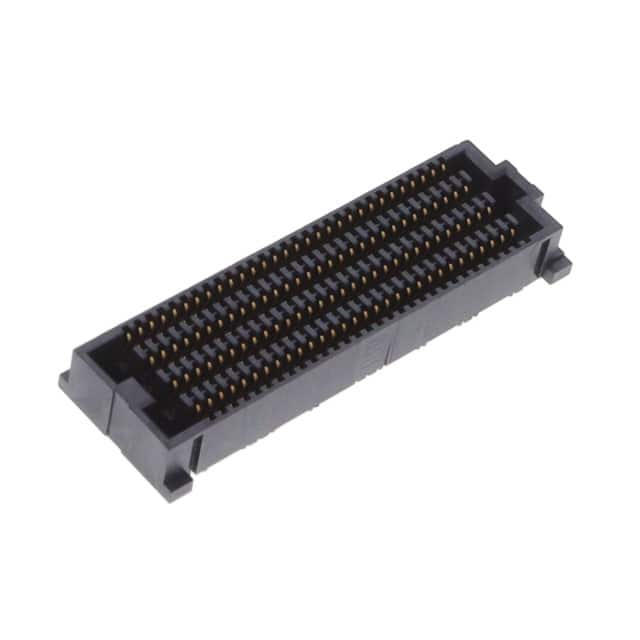

The SEAF8-30-05.0-S-08-3 is a high-density array receptacle connector from Samtec's SEARAY series. It features 240 positions arranged in 8 rows on a 0.80mm pitch, providing a compact board-to-board interconnect solution. The connector is designed for mezzanine stacking applications with mated heights of 7mm and 10mm.
The connector supports data rates up to 28 Gbps NRZ and 56 Gbps PAM4, making it suitable for high-speed digital interfaces. It is rated for a maximum current of 1.3A per pin (10 adjacent pins powered) and a maximum voltage of 220 VAC/311 VDC. The operating temperature range is -55°C to +125°C.
The SEAF8 utilizes Samtec's rugged Edge Rate contact system for reliable performance. It features solder charge terminations for ease of processing and lower insertion/withdrawal forces. The insulator is made of black LCP, and contacts are copper alloy with 30µin gold plating on the contact area and matte tin on solder tails. The connector is RoHS3 compliant and lead-free solderable.
The connector is supplied in tape and reel packaging with a standard package quantity of 425 pieces. It is surface mount and includes a board guide feature for alignment during assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $29.23 | $29.23 |
| 10+ | $24.91 | $24.91 |
| 25+ | $23.35 | $23.35 |
| 50+ | $22.77 | $22.77 |
| 100+ | $22.48 | $22.48 |
| 250+ | $19.34 | $19.34 |
| 425+ | $18.60 | $18.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
240 positions.
0.80mm (0.0315 inches).
1.3A maximum per pin (10 adjacent pins powered).
220 VAC / 311 VDC maximum.
Surface mount.
Up to 28 Gbps NRZ and 56 Gbps PAM4.
-55°C to +125°C.
