| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating (Per Contact) | |
| Data Rate | |
| Features | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions per Row | |
| Number of Rows | |
| Pitch | |
| SVHC Present | |
| Tape & Reel | |
| Termination | |
| Voltage Rating (Maximum @ AC) | |
| Voltage Rating (Maximum @ DC) |

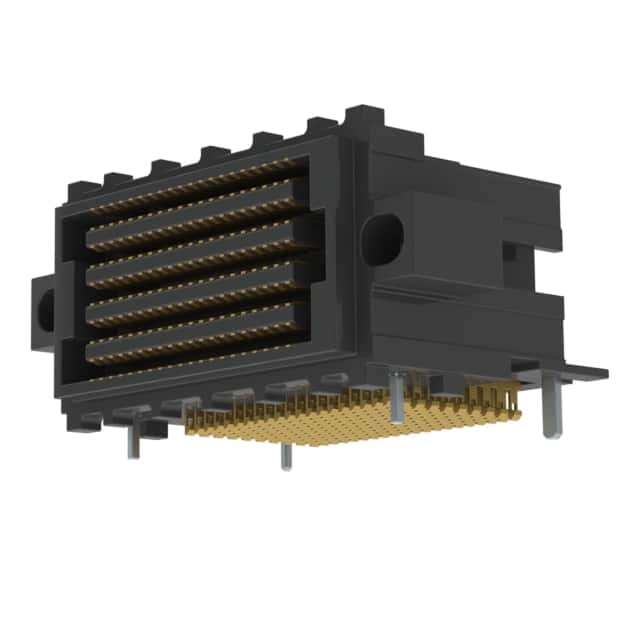

The Samtec SEAF8-20-1-S-10-2-RA-GP is a high-density array receptacle connector from the SEARAY family. It features 200 positions arranged in 10 rows on a 0.80mm pitch, providing a compact, high-density interconnect solution for board-to-board applications.
This right-angle surface mount receptacle is rated for a maximum current of 1.1A per contact and can handle voltages up to 240 VAC or 339 VDC. It supports data rates up to 56 Gbps, making it suitable for high-speed applications. The contacts are plated with 30µin gold over nickel, ensuring reliable connections.
The connector includes board guide and mating flange features for secure alignment. Termination is via solder charge, and the insulator is black LCP. The connector is RoHS3 compliant and REACH unaffected. It is designed for surface mount, right-angle assembly and is available in tape and reel packaging (75 parts per reel).
| Qty | Low | High |
|---|---|---|
| 75+ | $33.84 | $33.84 |
| 150+ | $33.83 | $33.83 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
200 positions.
0.80mm.
1.1A maximum.
240 VAC and 339 VDC maximum.
Surface mount, right angle.
56 Gbps.
