Mfr Part #:

SEAF8-10-05.0-S-06-2-K

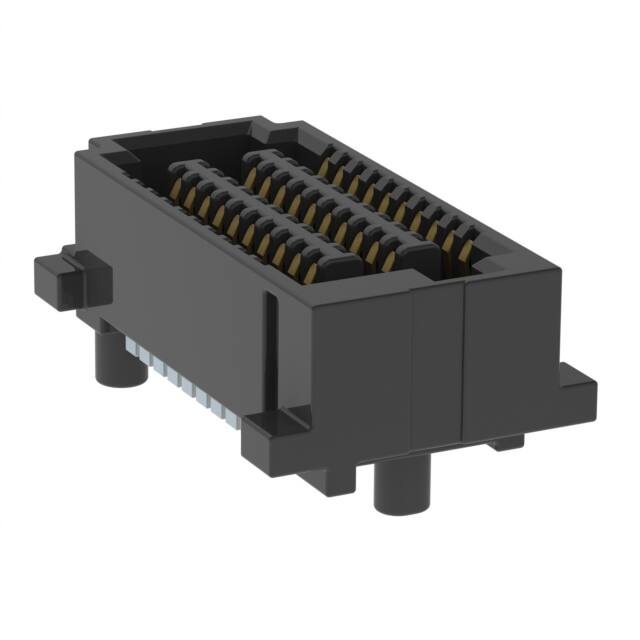

Samtec SEAF8 series 0.80mm pitch SEARAY high-speed high-density array socket with 60 positions, 6 rows, surface mount, and gold contacts. Supports 28 Gbps NRZ / 56 Gbps PAM4 data rates.

✓ Total Stock: 167 pcs

SEAF8-10-05.0-S-06-2-K Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Braun Electronic Components ✓ Non-Authorised Inventory information	167 pcs On Request	167 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SEAF8-10-05.0-S-06-2-K Description

Short technical summary and product information.

The Samtec SEAF8-10-05.0-S-06-2-K is a 0.80mm pitch SEARAY high-speed high-density open-pin-field array socket from the SEAF8 series. It features 60 positions arranged in 6 rows, with surface mount solder charge terminations. The connector uses the Rugged Edge Rate contact system with gold plating on the contact area and matte tin on the solder tail, ensuring reliable performance.

This socket is rated for 1.3 A per pin (10 adjacent pins powered) and 220 VAC / 311 VDC. It supports data rates up to 28 Gbps NRZ and 56 Gbps PAM4, making it suitable for high-speed digital applications. The operating temperature range is -55°C to +125°C, and it is qualified for severe environment testing per MIL-DTL-55302.

The connector offers 7mm and 10mm mated stacking heights, with a body height of 5.0mm. It includes board guide and pick-and-place features for automated assembly. The insulator is made of black LCP, and the contacts are copper alloy. Packaging is tape and reel.

SEAF8-10-05.0-S-06-2-K Quick Information

Product Type: High Density Array Socket

Series: SEAF8

Canonical Name: 0.80mm Pitch SEARAY High-Speed High-Density Open-Pin-Field Array Socket, 60 Positions, 6 Rows, Surface Mount, Gold

Subcategory: Mezzanine (Board to Board)

SEAF8-10-05.0-S-06-2-K Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Yes (Lead-Free Solderable)

SEAF8-10-05.0-S-06-2-K Features

60-position high-density array socket with 0.8mm pitch.
Rugged Edge Rate contact system for reliable performance.
Supports data rates up to 28 Gbps NRZ / 56 Gbps PAM4.
Rated for 1.3 A per pin and 220 VAC / 311 VDC.
Surface mount with solder charge terminations.

SEAF8-10-05.0-S-06-2-K Applications

Ideal for high-speed mezzanine board-to-board connections.
Used in data center and networking equipment.
Suitable for automotive and industrial harsh environments.
Supports high-density signal routing in compact designs.

SEAF8-10-05.0-S-06-2-K FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the SEAF8-10-05.0-S-06-2-K have?

60 positions.

What is the pitch of this connector?

0.80mm (0.0315 inches).

What is the current rating per pin?

1.3 A per pin when 10 adjacent pins are powered.

What is the voltage rating?

220 VAC / 311 VDC.

What is the mounting type?

Surface mount.

What data rates does this connector support?

28 Gbps NRZ and 56 Gbps PAM4.

What is the operating temperature range?

-55°C to +125°C.

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Samtec Inc.
Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	0.76µm (30.0µin)
Contact Material	Copper Alloy
Contact Plating	Gold on contact, Matte Tin on solder tail
Current Rating	1.3 A
Data Rate	28 Gbps NRZ / 56 Gbps PAM4
Features	Board Guide, Pick and Place
Height Above Board	4.57mm (0.180")
Insulator Material	Black LCP
Lead Style	5.0mm Body Height
Mated Stacking Heights	7mm, 10mm
Mounting Type	Surface Mount
Number of Positions	60
Number of Rows	6
Operating Temperature Range	-55°C to +125°C
Pitch	0.80mm (0.031")
Tape & Reel	Yes
Termination Style	Solder
Voltage Rating	220 VAC / 311 VDC
