| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Current Rating | |
| Data Rate | |
| Features | |
| Halogen Free | |
| Height Above Board | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mating Cycles | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Plating | |
| Tape & Reel | |
| Voltage Rating |

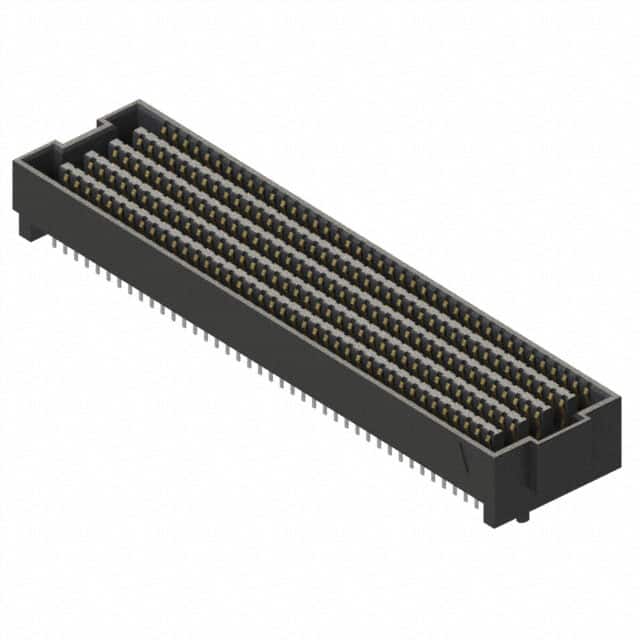

The Samtec SEAF-40-05.0-S-10-2-A is a high-density open-pin-field array socket from the SEARAY series. It features 400 positions arranged in 10 rows with a 1.27mm (0.050") pitch. The connector uses the Edge Rate contact system, designed for high-speed applications requiring up to 56 Gbps PAM4 performance and high mating cycles.
This socket is rated for 2.7 A per pin (10 pins powered) and 240 VAC/339 VDC. It operates over a temperature range of -55 °C to +125 °C. The insulator is made of black LCP, and contacts are copper alloy with gold plating (30 µ" on contact area, matte tin on solder tail). The connector supports mated stacking heights from 7mm to 18mm.
The SEAF-40-05.0-S-10-2-A is surface mount with solder charge termination and includes a board guide feature. It is lead-free solderable and packaged in trays of 36 pieces.
| Qty | Low | High |
|---|---|---|
| 36+ | $22.55 | $22.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 400 positions.
The pitch is 1.27 mm (0.050").
The current rating is 2.7 A (10 pins powered).
The voltage rating is 240 VAC/339 VDC.
The mounting type is surface mount.
The operating temperature range is -55 °C to +125 °C.
The connector supports 56 Gbps PAM4 performance.
