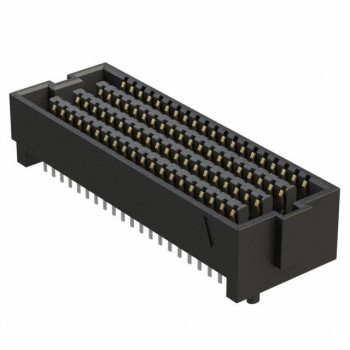

SEAF-20-06.5-S-08-2-A-K-TR The Samtec SEAF-20-06.5-S-08-2-A-K-TR is a High Density Array Receptacle. It features 160 positions and a 1.27mm pitch.
Mfr Part #:

SEAF-20-06.5-S-08-2-A-K-TR

Available from 1 distributors
Mfr Name: SMT
SMT
The Samtec SEAF-20-06.5-S-08-2-A-K-TR is a High Density Array Receptacle. It features 160 positions and a 1.27mm pitch.
✓ Total Stock: 681 pcs

SEAF-20-06.5-S-08-2-A-K-TR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
681 pcs
On Request
681 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SEAF-20-06.5-S-08-2-A-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Finish Thickness
Height Above Board
Mated Stacking Heights
Mounting Type
Number of Positions
Number of Rows
Pitch
View Similar Products (0)

SEAF-20-06.5-S-08-2-A-K-TR Description

Short technical summary and product information.

The Samtec SEAF-20-06.5-S-08-2-A-K-TR is a High Density Array Receptacle designed for board-to-board applications. This component features 160 positions arranged in 8 rows with a pitch of 1.27mm.



Key electrical specifications include a gold contact finish with a thickness of 30.0µin (0.76µm). The receptacle offers multiple mated stacking heights ranging from 8.5mm to 19.5mm, with a height above board of 6.55mm.



This connector is designed for surface mount applications and includes features like board guides and pick-and-place compatibility. It is supplied in Tape & Reel packaging.



The SEAF-20-06.5-S-08-2-A-K-TR is part of Samtec's SEARAY™ SEAF series.

SEAF-20-06.5-S-08-2-A-K-TR Quick Information

Product Type: High Density Array Receptacle
Series: SEAF
Canonical Name: Samtec SEAF-20-06.5-S-08-2-A-K-TR High Density Array Receptacle, 160 Positions, 1.27mm Pitch, Surface Mount
Subcategory: High Density Array Receptacle

SEAF-20-06.5-S-08-2-A-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SEAF-20-06.5-S-08-2-A-K-TR Features

  • 160 positions in 8 rows
  • 1.27mm pitch for dense connections
  • Gold contact finish for durability
  • Multiple mated stacking heights available
  • Surface mount for automated assembly

SEAF-20-06.5-S-08-2-A-K-TR Applications

  • Ideal for high-density board stacking
  • Suitable for mezzanine board applications
  • Used in compact electronic systems
  • Facilitates modular system design

SEAF-20-06.5-S-08-2-A-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SEAF-20-06.5-S-08-2-A-K-TR have?

160 positions.

What is the pitch of this connector?

1.27mm.

What is the mounting type?

Surface mount.

How many rows does this connector have?

8 rows.

What is the contact finish?

Gold with 0.76µm thickness.

What mated stacking heights are supported?

8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, and 19.5mm.

What is the height above board?

6.55mm.
