Mfr Part #:

SEAF-20-06.5-S-05-2-A-K-TR

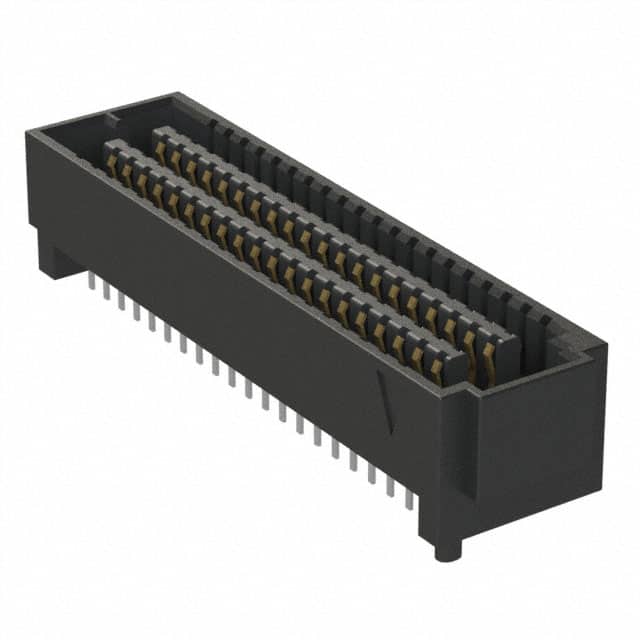

Samtec SEAF series .050" (1.27mm) pitch High-Speed 56Gbps Array Receptacle, 100 pins, 5 rows, 30µin gold contact finish, 6.5mm height, Edge Rate contact system, surface mount tape and reel.

✓ Total Stock: 25 pcs

$ Price Range: $8.05 - $16.26

SEAF-20-06.5-S-05-2-A-K-TR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Bristol Electronics ✓ Non-Authorised Inventory information	25 pcs On Request	25 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

SEAF-20-06.5-S-05-2-A-K-TR Description

Short technical summary and product information.

The Samtec SEAF-20-06.5-S-05-2-A-K-TR is a 100-position, 5-row high-density array receptacle from the SEARAY family. It features a 1.27mm (0.050") pitch and is designed for mezzanine board-to-board stacking applications. The connector uses Samtec's Edge Rate contact system, rated for 56 Gbps PAM4 performance and 5,000 mating cycles.

Electrical ratings include 2.7A per pin (10 pins powered) and up to 240 VAC / 339 VDC. It operates over a temperature range of -55°C to +125°C. The insulator is black LCP, contacts are copper alloy with gold or tin over 50µin nickel plating.

This connector is surface mount and supplied in tape and reel packaging, 200 parts per package. It includes board guide and pick-and-place features, and is lead-free solderable.

SEAF-20-06.5-S-05-2-A-K-TR Quick Information

Product Type: Receptacle Connector

Series: SEAF

Canonical Name: Samtec SEAF Series .050" SEARAY High-Speed 56Gbps Array Receptacle Connector, 100 Pin, 5 Row, 30µin Gold/Tin, 6.5mm Height, RoHS, Tape & Reel

Subcategory: Board-to-Board Array Connector

SEAF-20-06.5-S-05-2-A-K-TR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Lead Free: Lead-Free Solderable

SEAF-20-06.5-S-05-2-A-K-TR Estimated Pricing

Qty	Low	High
1+	$16.26	$16.26
10+	$14.43	$14.43
25+	$13.52	$13.52
50+	$12.81	$12.81
100+	$11.76	$11.76
200+	$10.23	$10.23
400+	$8.98	$8.98
1,000+	$8.05	$8.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

SEAF-20-06.5-S-05-2-A-K-TR Features

56 Gbps PAM4 high-speed performance.
Edge Rate contact system for 5,000 mating cycles.
100 positions in 5 rows at 1.27mm pitch.
Rated 2.7A per pin and 240VAC max.
Surface mount tape and reel packaging.

SEAF-20-06.5-S-05-2-A-K-TR Applications

High-speed mezzanine board-to-board interconnects.
Data center networking and switch equipment.
Automotive radar and ADAS modules.
Industrial control and automation systems.

SEAF-20-06.5-S-05-2-A-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the SEAF-20-06.5-S-05-2-A-K-TR have?

100 positions in a 5-row configuration.

What is the pitch of this connector?

1.27mm (0.050") pitch.

What is the voltage rating?

240 VAC / 339 VDC maximum.

What is the current rating?

2.7A maximum per pin when 10 pins are powered.

What mounting type does this connector use?

Surface mount.

Is this connector lead-free solderable?

Yes, it is lead-free solderable per the datasheet.

What is the operating temperature range?

-55°C to +125°C.

Category	Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Name	Samtec Inc.
Connector Type	High Density Array, Female
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Copper Alloy
Current Rating	2.7 A (10 pins powered)
Data Rate	56 Gbps PAM4
Features	Board Guide, Pick and Place
Halogen Free	Yes
Height Above Board	0.258" (6.55mm)
Industrial Grade	Yes
Insulator Material	Black LCP
Mated Stacking Heights	8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
Mating Cycles	5000
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	5
Operating Temperature Range	-55 °C to +125 °C
Pitch	1.27mm (0.050")
Plating	Au or Sn over 50 µ" (1.27 µm) Ni
Tape & Reel	Yes
Voltage Rating	240 VAC / 339 VDC
