SEAF-20-05.0-S-08-2-A-K-TR Samtec SEAF-20-05.0-S-08-2-A-K-TR is a 160-position, 8-row high-density array receptacle connector with 1.27mm pitch, surface mount, gold contacts, and 56 Gbps data rate capability.
Mfr Part #:

SEAF-20-05.0-S-08-2-A-K-TR

Available from 2 distributors
Mfr Name: Samtec Inc.
Samtec Inc.
Samtec SEAF-20-05.0-S-08-2-A-K-TR is a 160-position, 8-row high-density array receptacle connector with 1.27mm pitch, surface mount, gold contacts, and 56 Gbps data rate capability.
✓ Total Stock: 471 pcs
$ Price Range: $8.65 - $14.55

SEAF-20-05.0-S-08-2-A-K-TR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request On Request On Request On Request
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
221 pcs
On Request
221 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SEAF-20-05.0-S-08-2-A-K-TR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Current Rating
Data Rate
Features
Halogen Free
Height Above Board
Insulator Material
Lead Spacing
Lead Style
Mated Stacking Heights
Mounting Type
Number of Contacts
Number of Positions
Number of Rows
Operating Temperature Range
Packaging Type
Pitch
Plating
SVHC Present
Standard Package Quantity
Tape & Reel
Voltage Rating (Maximum)
View Similar Products (0)

SEAF-20-05.0-S-08-2-A-K-TR Description

Short technical summary and product information.

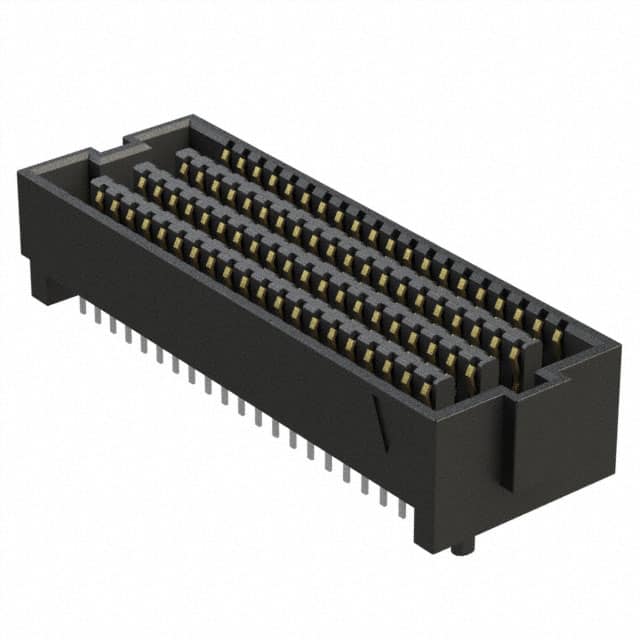

This is a SEARAY series high-speed array receptacle from Samtec. It features 160 positions in 8 rows at 1.27mm pitch. The connector is rated for 56 Gbps PAM4 performance and uses the Edge Rate contact system for high mating cycles.



Electrical ratings include 2.7A per pin (10 pins powered) and 240 VAC/339 VDC maximum voltage. Operating temperature range is -55°C to +125°C. The insulator is black LCP, contacts are copper alloy with 30µin gold on contact area and matte tin on solder tail.



The connector supports various mated stacking heights from 7mm to 18mm. It features board guide and pick-and-place for automated assembly. Packaging is tape and reel with 250 parts per reel. The part is lead-free solderable and RoHS compliant (unverified).

SEAF-20-05.0-S-08-2-A-K-TR Quick Information

Product Type: High-Density Array Receptacle
Series: SEAF
Canonical Name: SEARAY High-Speed 56Gbps Array Receptacle, 160 Position, 1.27mm Pitch, Surface Mount
Subcategory: Mezzanine Connector

SEAF-20-05.0-S-08-2-A-K-TR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

SEAF-20-05.0-S-08-2-A-K-TR Estimated Pricing

Qty Low High
1+ $14.55 $14.55
10+ $12.37 $12.37
25+ $11.60 $11.60
50+ $11.05 $11.05
100+ $10.67 $10.67
250+ $10.60 $10.60
500+ $9.60 $9.60
1,000+ $8.65 $8.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

SEAF-20-05.0-S-08-2-A-K-TR Features

  • 160 positions in 8 rows at 1.27mm pitch.
  • Supports 56 Gbps PAM4 high-speed data rates.
  • Rated for 2.7A per pin and 240 VAC/339 VDC.
  • Surface mount with board guide and pick-and-place.
  • Gold plated contacts for reliable connections.

SEAF-20-05.0-S-08-2-A-K-TR Applications

  • Ideal for high-speed mezzanine board-to-board connections.
  • Used in data center and networking equipment.
  • Suitable for test and measurement systems.
  • Applicable in industrial and harsh environment electronics.

SEAF-20-05.0-S-08-2-A-K-TR FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the SEAF-20-05.0-S-08-2-A-K-TR have?

160 positions in 8 rows.

What is the pitch of this connector?

1.27mm (0.050").

What is the current rating per pin?

2.7A maximum (10 pins powered).

What is the voltage rating?

240 VAC or 339 VDC maximum.

What is the mounting type?

Surface mount.

What data rate does this connector support?

56 Gbps PAM4.

What is the operating temperature range?

-55°C to +125°C.
