| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,605 pcs
|
3605 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
493 pcs
|
493 pcs | On Request | 1 | On Request | On Request | 13+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Operating Temperature (Minimum/Maximum) | |
| P1dB | |
| RF Type | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Test Frequency | |
| Voltage |
The Skyworks Solutions SE2574BL-R is an RF Amplifier IC specifically designed for 802.11b/g/n WLAN applications. It operates across the 2.4GHz to 2.5GHz frequency band, making it suitable for wireless networking designs.
This amplifier features a typical power gain of 29dB and a typical output power (P1dB) of 25dBm at 2500MHz. It requires a single supply voltage ranging from 2.7V to 5V, with a typical operating voltage of 3.3V. The typical supply current is 165mA.

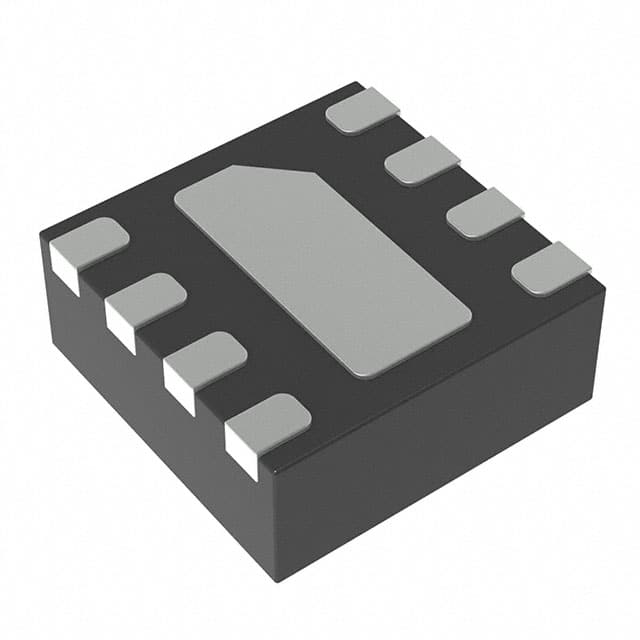

The SE2574BL-R comes in an 8-QFN (2x2) package, also referred to as an 8-VFDFN Exposed Pad. It is designed for surface mount applications and operates within a temperature range of -40°C to 85°C.
This component is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.98 | $0.98 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The SE2574BL-R operates within a voltage supply range of 2.7V to 5V.
The SE2574BL-R has a typical gain of 29dB.
The SE2574BL-R operates in the frequency range of 2.4GHz to 2.5GHz.
The SE2574BL-R is supplied in an 8-VFDFN Exposed Pad package, also described as an 8-QFN (2x2).
The SE2574BL-R can operate in temperatures from -40°C to 85°C.
