SE2433T-R The Skyworks Solutions SE2433T-R is an RF Amplifier designed for ISM band applications. It operates within the 2.4GHz to 2.48GHz frequency range.
Mfr Part #:

SE2433T-R

Available from 1 distributors
Mfr Name: Skyworks Solutions
Skyworks Solutions
The Skyworks Solutions SE2433T-R is an RF Amplifier designed for ISM band applications. It operates within the 2.4GHz to 2.48GHz frequency range.
✓ Total Stock: 300 pcs
$ Price Range: $0.98

SE2433T-R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
300 pcs
300 pcs On Request 1 On Request On Request On Request On Request On Request

SE2433T-R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Gain
Lead Spacing
Mounting Type
RF Type
Supplier Device Package
Supplier Package
Test Frequency
Voltage

SE2433T-R Description

Short technical summary and product information.

The Skyworks Solutions SE2433T-R is a surface-mount RF amplifier IC designed for ISM band applications. It operates across a supply voltage range of 2V to 3.6V, with a typical supply current draw between 50mA and 100mA. This amplifier provides a typical gain of 22dB and is specified for operation in the 2.4GHz to 2.483GHz frequency range, with a test frequency of 2.4GHz.

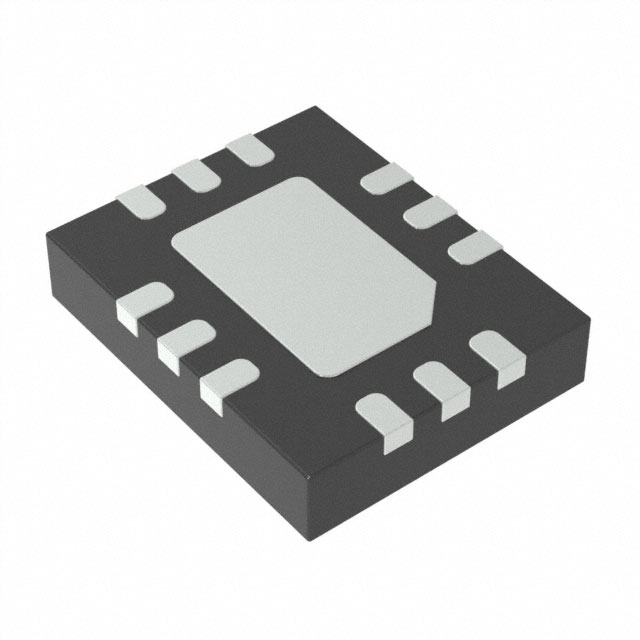

The device is housed in a 12-UFQFN Exposed Pad package, with specific dimensions of 2.5x2 mm and a maximum height of 0.55mm. It is designed for surface mounting, making it suitable for compact electronic designs. The operating temperature range for this component is from -40°C to +85°C.



This RF amplifier is suitable for various wireless communication systems operating in the ISM band. Its specifications make it a component for applications requiring reliable RF signal amplification within its operating frequency and voltage parameters.

SE2433T-R Quick Information

Product Type: RF Amplifier
Series: SE2433T
Canonical Name: Skyworks Solutions SE2433T-R RF Amplifier
Subcategory: ISM Band Amplifiers

SE2433T-R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SE2433T-R Estimated Pricing

Qty Low High
1+ $0.98 $0.98

Estimated market price range - modelled values for guidance only, not live distributor offers.

SE2433T-R Features

  • RF amplifier for ISM band applications.
  • Operates from 2.4GHz to 2.483GHz.
  • Provides a typical gain of 22dB.
  • Wide supply voltage range of 2V to 3.6V.
  • Surface mount 12-UFQFN Exposed Pad package.

SE2433T-R Applications

  • Suitable for wireless communication amplifiers.
  • Used in Wi-Fi and ISM band devices.
  • Ideal for RF signal boosting circuits.
  • Applicable in IoT and smart home products.

SE2433T-R FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the SE2433T-R?

The SE2433T-R operates within a voltage range of 2V to 3.6V.

What is the package type of the SE2433T-R?

The SE2433T-R is supplied in a 12-UFQFN Exposed Pad package.

What is the operating temperature range for this RF amplifier?

The SE2433T-R can operate between -40°C and +85°C.

Is the SE2433T-R RoHS compliant?

Yes, the SE2433T-R is RoHS3 Compliant.
