| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Current (Full Load) | |
| Input Current (No Load) | |
| Input Filter | |
| Input Surge Voltage | |
| Internal Power Dissipation | |
| Isolation Voltage | |
| Length | |
| Line Regulation | |
| Load Regulation | |
| MTBF | |
| Max Capacitive Load | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage Accuracy | |
| Power (Watts) | |
| Reverse Polarity Input Current | |
| Short Circuit Input Power | |
| Start-up Voltage | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Under Voltage Shutdown | |
| Voltage | |
| Voltage - Input (Max) | |
| Voltage - Output 1 | |
| Width |

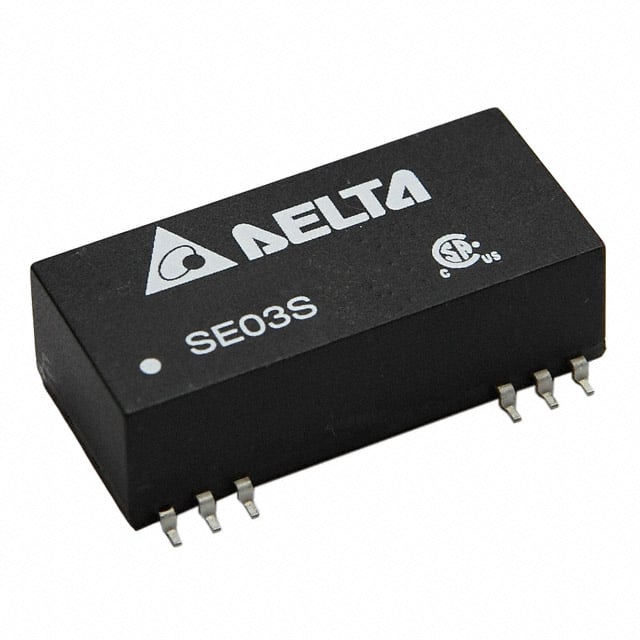

The SE03S2405A is a 3W isolated DC/DC converter from Delta Electronics, part of the SE03S/D series. It accepts a 2:1 wide input voltage range of 18V to 36V (24V nominal) and provides a regulated 5V output at up to 600mA. Typical efficiency is 80%.
Key features include 1500VDC input-to-output isolation, short circuit protection (SCP), under voltage lockout (UVLO), and a Pi filter input for noise reduction. Output voltage accuracy is ±0.5%, line regulation ±0.1%, and load regulation ±0.3%. The converter is designed for medical applications and offers high reliability with an MTBF greater than 1,000,000 hours.
Packaged in a 24-SMD module with 12 leads, surface mount configuration, the converter measures 32.3mm x 18.8mm x 10.2mm. It operates over a temperature range of -40°C to +71°C and is lead-free and RoHS compliant as per the datasheet.
The input voltage range is 18V to 36V (24V nominal).
Output voltage is 5V, maximum output current is 600mA.
Package is a 24-SMD Module with 12 leads, surface mount.
-40°C to +71°C.
Yes, it is lead-free and RoHS compliant as per the datasheet.
1500 VDC input-to-output isolation.
80% at full load.
