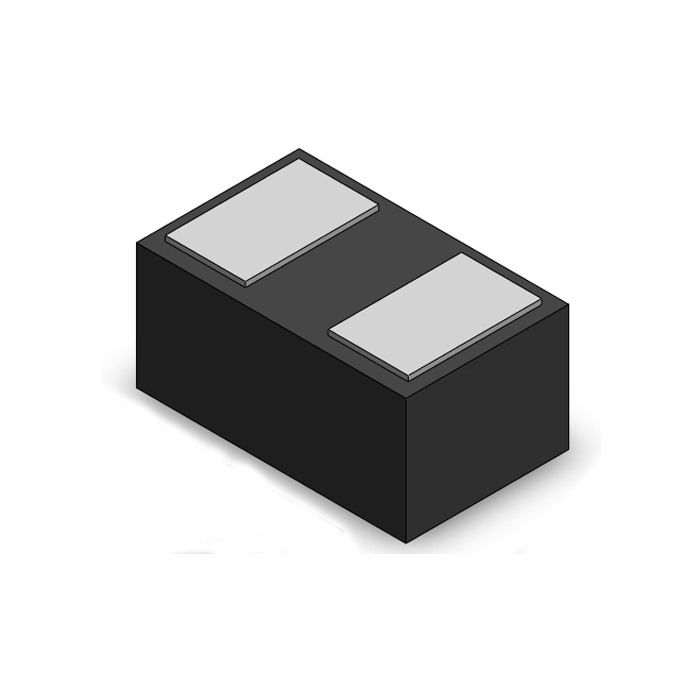

SE03N6C01HZ The SOCAY SE03N6C01HZ is a TVS Diode in a DFN1006-2L package. It features a 3.3V reverse voltage and a 4A peak pulse current.
Mfr Part #:

SE03N6C01HZ

Available from 1 distributors
Mfr Name: Socay
Socay
The SOCAY SE03N6C01HZ is a TVS Diode in a DFN1006-2L package. It features a 3.3V reverse voltage and a 4A peak pulse current.
✓ Total Stock: 1,736 pcs

SE03N6C01HZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
1,736 pcs
On Request
1736 pcs On Request 1 On Request On Request 23+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SE03N6C01HZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Junction Capacitance
Package / Case
Reverse Voltage
SVHC Present
View Similar Products (0)

SE03N6C01HZ Description

Short technical summary and product information.

The SOCAY SE03N6C01HZ is a Transient Voltage Suppressor (TVS) diode designed for voltage protection. It operates with a nominal reverse voltage of 3.3V and has a breakdown voltage typically around 7V, with a maximum of 12V. The device can handle a peak pulse current of 4A and has a clamping voltage of 27V at 1A.



This TVS diode is housed in a compact DFN1006-2L package, suitable for surface-mount applications. Its typical junction capacitance is 0.4pF, and it exhibits a low leakage current of 1μA. The SE03N6C01HZ is specified as RoHS3 Compliant, with an MSL rating of 1 Unlimited and REACH Unaffected status.



This component is part of Socay Electronics' DFN1006-2L Series, which offers various voltage suppression solutions. Its specifications make it suitable for protecting sensitive electronic components from transient overvoltages in various applications.

SE03N6C01HZ Quick Information

Product Type: TVS Diode
Series: DFN1006-2L Series
Canonical Name: SE03N6C01HZ TVS Diode
Subcategory: TVS Diode

SE03N6C01HZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SE03N6C01HZ Features

  • 3.3V reverse voltage rating.
  • 4A peak pulse current capability.
  • DFN1006-2L surface-mount package.
  • Low leakage current of 1μA.
  • Typical junction capacitance of 0.4pF.

SE03N6C01HZ Applications

  • Protects sensitive electronic circuits.
  • Suitable for high-speed data lines.
  • Used in compact electronic devices.
  • Surface-mount assembly compatibility.

SE03N6C01HZ FAQs

7 frequently asked questions generated from this part’s specifications.
What is the standoff voltage of the SE03N6C01HZ?

The standoff voltage is 3.3V.

What is the breakdown voltage range?

The breakdown voltage ranges from 4.1V minimum to 12V maximum, with a typical value of 7V.

What is the clamping voltage?

The clamping voltage is 27V at 1A.

What is the peak pulse current rating?

The peak pulse current is 4A.

What is the package type?

The package is DFN1006-2L.

What is the leakage current?

The leakage current is 1μA.

What is the junction capacitance?

The junction capacitance is 0.4pF.
