| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Overload Protection | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

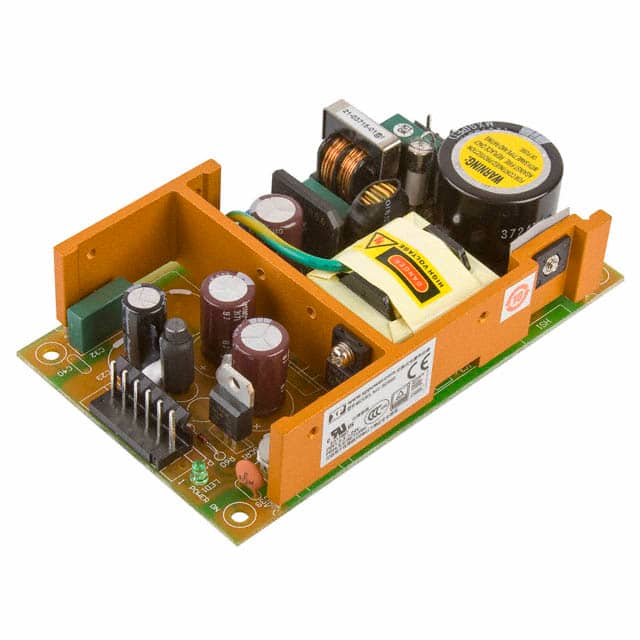

The XP Power SDS60US24 is an AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 90-264 VAC and provides a single 24V output with a maximum current of 2.6A, delivering up to 60W of power. The converter features an efficiency of 80% typical at 230 VAC full load.
This open frame unit is designed for chassis mounting and includes features such as adjustable output, DC input capability, and universal input. It offers robust electrical specifications including line regulation of 1% and load regulation of 7% max. Safety and compliance are addressed with approvals like EN62368-1, UL62368-1, and CE marking.
The operating temperature range is 0°C to +40°C, with a derated range of -20°C to 60°C. The dimensions are 127.0mm x 76.2mm x 30.5mm. The SDS60US24 also includes overvoltage, overload, and short circuit protection for reliable operation.
The XP Power SDS60US24 has a single output voltage of 24V.
The SDS60US24 provides a maximum output power of 60W.
The typical efficiency of the SDS60US24 is 80% at 230 VAC full load.
The operating temperature range is 0°C to +40°C, with derating up to 60°C.
Yes, the SDS60US24 is RoHS3 Compliant.
