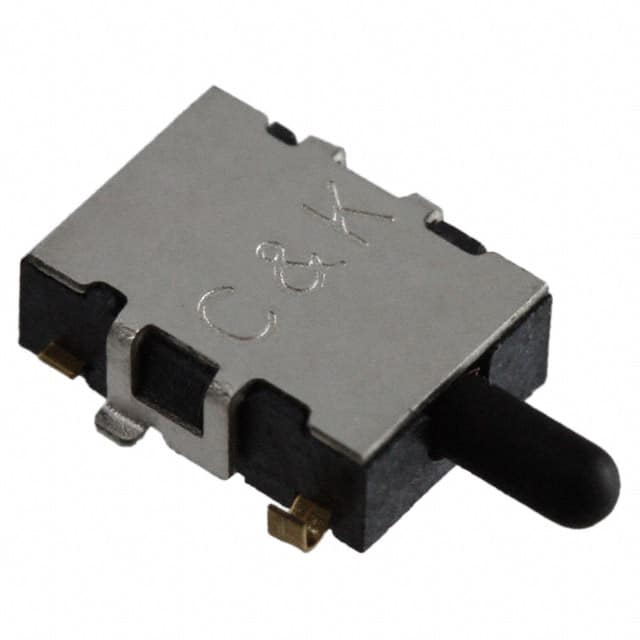

SDS004R The C&K Components SDS004R is a limit switch with a SPST-NO circuit, rated for 100mA at 12V. It operates within a temperature range of -40°C to 85°C.
Mfr Part #:

SDS004R

Available from 1 distributors
Mfr Name: C&K Components
C&K Components
The C&K Components SDS004R is a limit switch with a SPST-NO circuit, rated for 100mA at 12V. It operates within a temperature range of -40°C to 85°C.
✓ Total Stock: 51,000 pcs
$ Price Range: $0.75

SDS004R Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
51,000 pcs
On Request
51000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

SDS004R Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Mounting Type
Operating Force
Operating Temperature
Overtravel
Switch Function
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

SDS004R Description

Short technical summary and product information.

The C&K Components SDS004R is a limit switch designed for detection applications. It features a Single Pole Single Throw Normally Open (SPST-NO) circuit configuration.



This switch is rated for a maximum current of 100mA at 12V DC. It operates reliably within a temperature range of -40°C to 85°C. The actuator type is an overtravel plunger, and it has an overtravel distance of 2.0mm.



Designed for surface mounting, the SDS004R utilizes a right-angle configuration with SMD (SMT) tab termination. Its compact design and specific operating force of 75gf make it suitable for various integration needs.

SDS004R Quick Information

Product Type: Switch
Canonical Name: C&K Components SDS004R SPST-NO Switch
Subcategory: Detect Switch

SDS004R Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

SDS004R Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

SDS004R Features

  • SPST-NO circuit configuration.
  • Rated for 100mA at 12V DC.
  • Operates from -40°C to 85°C.
  • Surface mount, right-angle package.
  • Overtravel plunger actuator.

SDS004R Applications

  • Used in limit switch applications for machinery.
  • Suitable for automation and control systems.
  • Ideal for detecting mechanical positions.
  • Applicable in safety interlock systems.

SDS004R FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the SDS004R switch?

The operating temperature range is -40°C to 85°C.

What is the current rating of the SDS004R switch?

The current rating is 100mA (DC).

What is the voltage rating for the SDS004R switch?

The voltage rating is 12V.

What type of actuator does the SDS004R switch have?

It has an overtravel plunger actuator.

What is the circuit configuration of the SDS004R switch?

The circuit configuration is SPST-NO (Single Pole Single Throw Normally Open).

What is the operating force required for the SDS004R switch?

The operating force is 75gf.

What is the overtravel distance for the SDS004R switch?

The overtravel distance is 0.079 inches (2.0mm).
